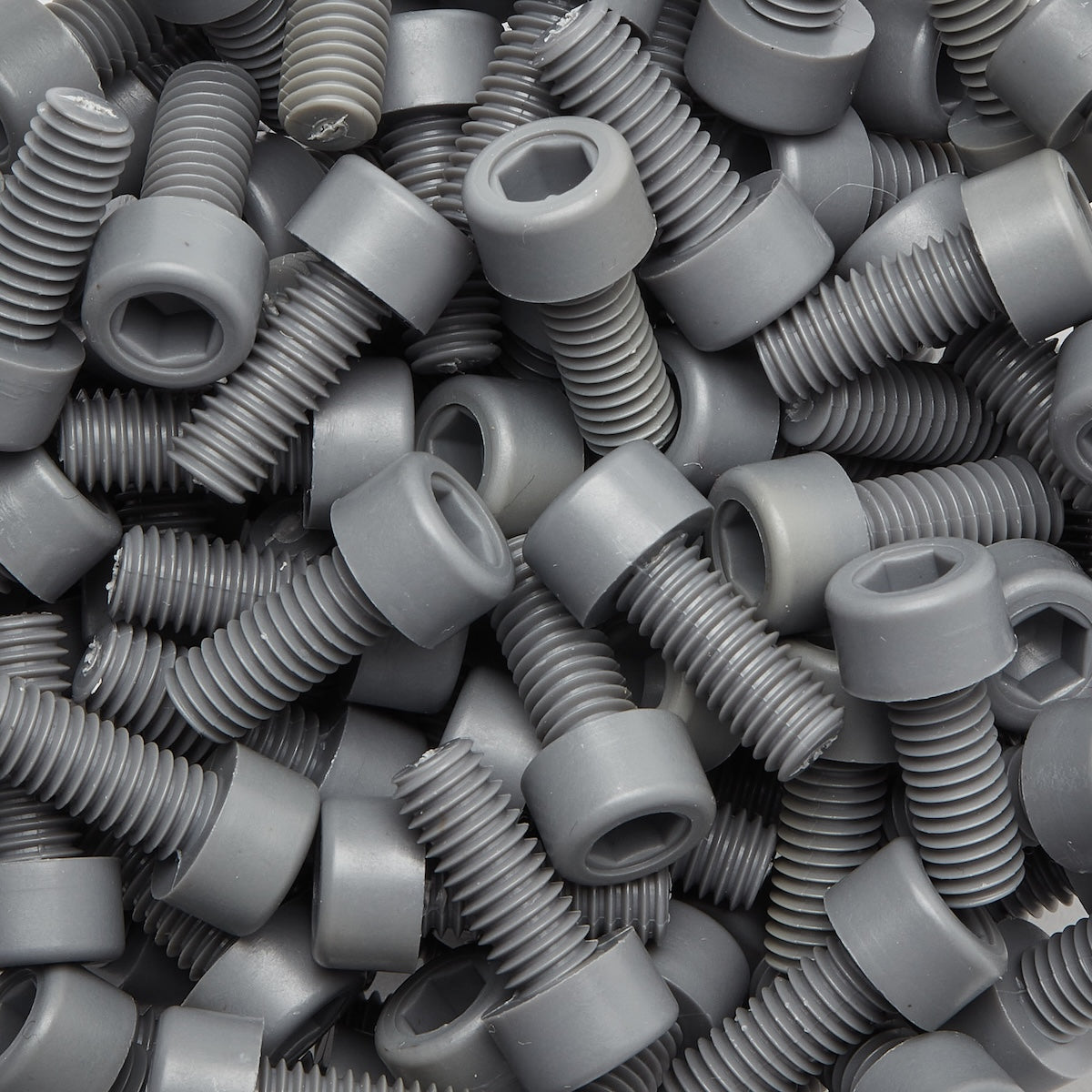

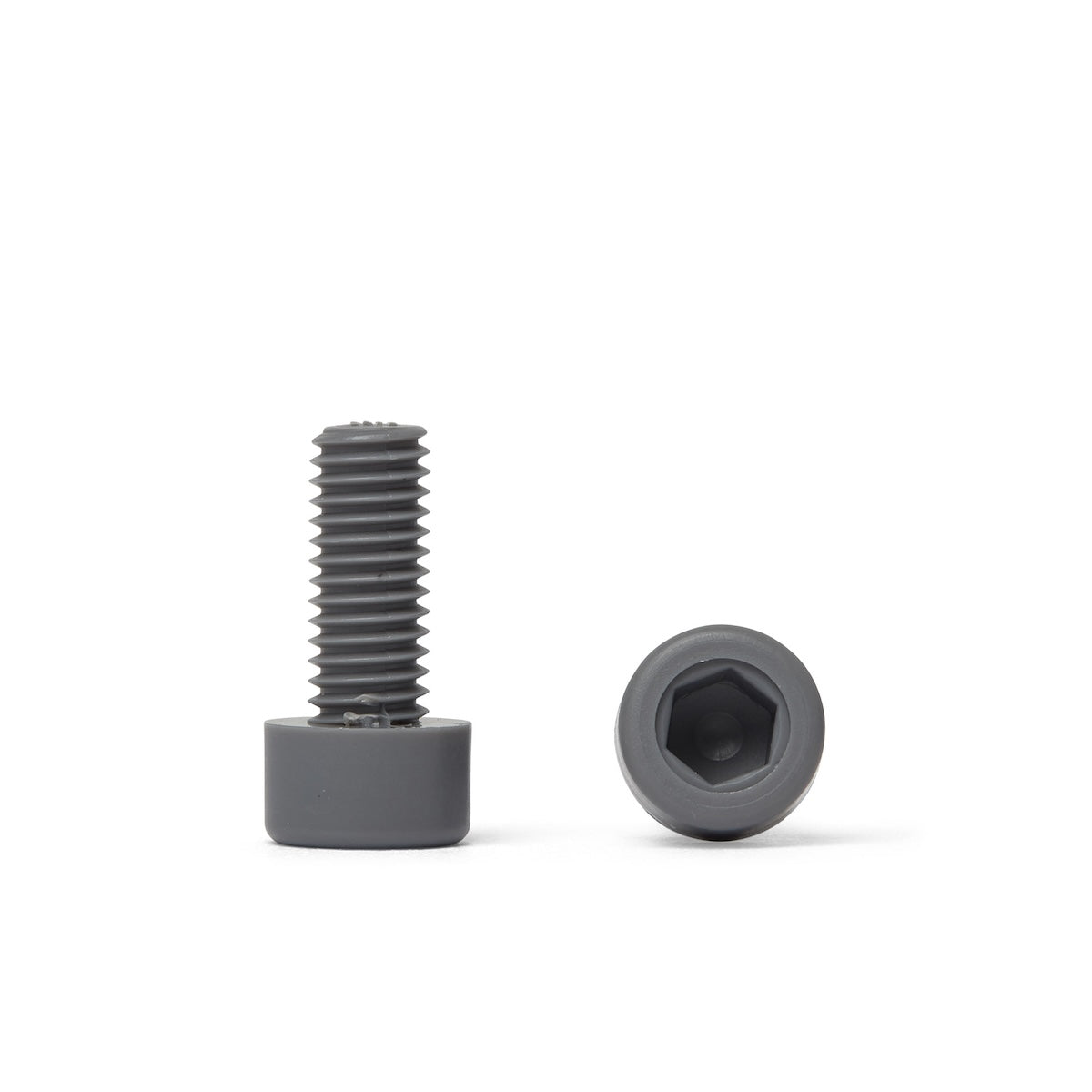

Tornillos de cabeza cilíndrica de PVC

14 en stock ahora, más disponibles en 14 días.
SKU: PVCSH308
Precio normal €0,32 - €0,49 EUR / each Ex. VAT

Buy more and save

1 pc €0,49
500 pcs €0,47
1000 pcs €0,44
2500 pcs €0,39
5000 pcs €0,37
10000 pcs €0,34
20000 pcs €0,32
30000+ pcs Contact us
Show more Show less

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request For Quote

Tornillos de cabeza cilíndrica de PVC

Dibujo del producto

Socket Head Cap Screw Dimension Table (ISO4762/DIN912)
M Size Pitch (mm) Head Diameter (mm) Head Height (mm) Drive Size (mm)
M1.6 0.35 3.0 1.6 1.5
M2 0.40 3.8 2.0 1.5
M2.5 0.45 4.5 2.5 2.0
M3 0.50 5.5 3.0 2.5
M4 0.70 7.0 4.0 3.0
M5 0.80 8.5 5.0 4.0
M6 1.00 10.0 6.0 5.0
M8 1.25 13.0 8.0 6.0
M10 1.50 16.0 10.0 8.0
M12 1.75 18.0 12.0 10.0
M14 2.00 21.0 14.0 12.0
M16 2.00 24.0 16.0 14.0

Tabla de dimensiones

Las dimensiones de Tornillos de cabeza cilíndrica de PVC en todos los tamaños disponibles se muestran según el dibujo del producto anterior.

Key Polyvinyl Chloride (PVC) Properties
