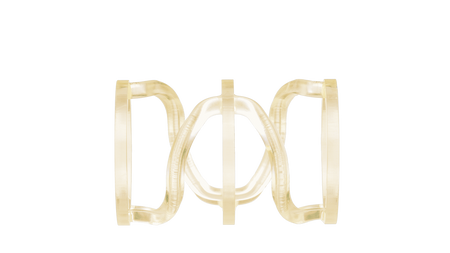

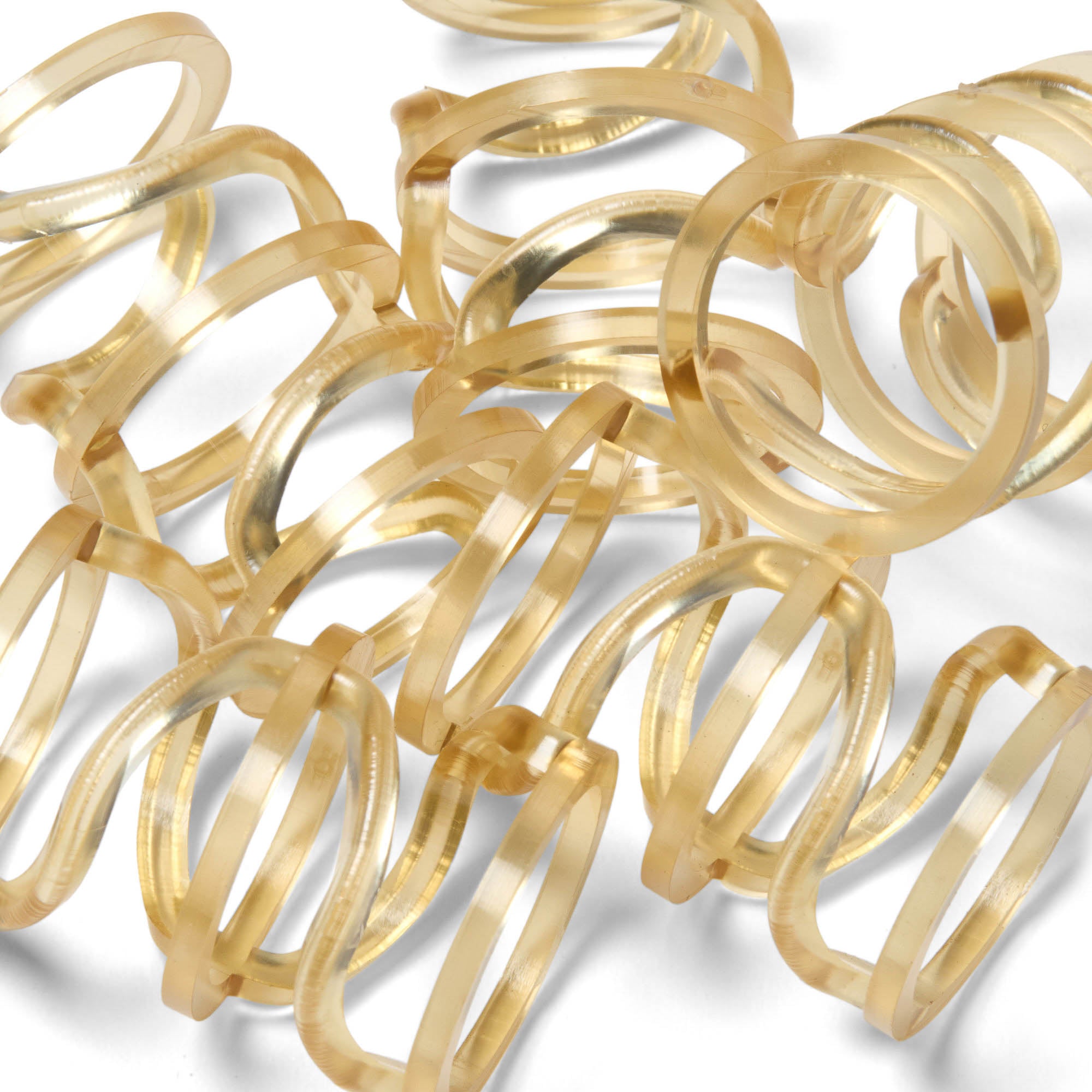

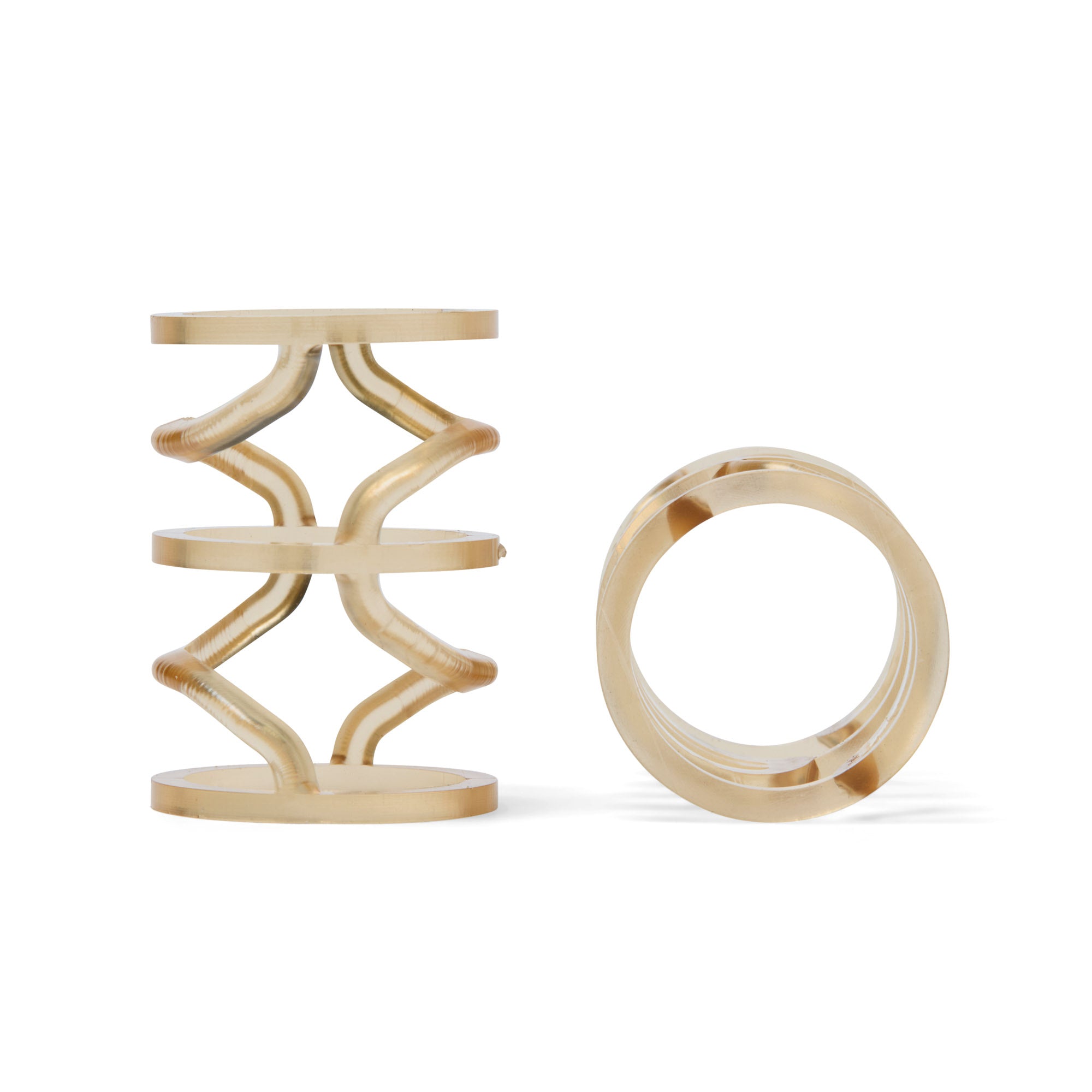

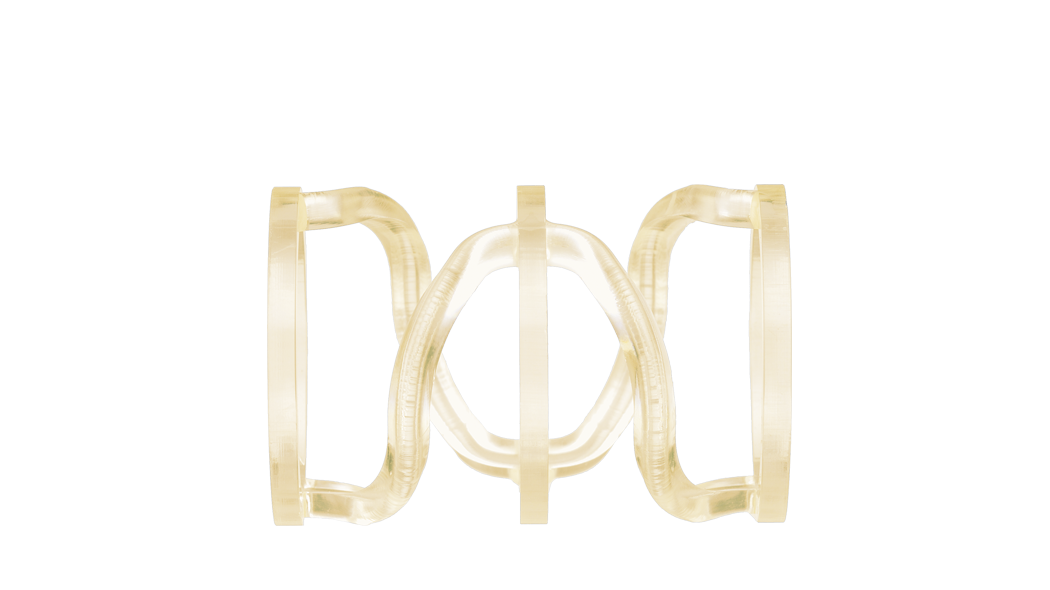

Polyphenylsulfone (PPSU) OMEGA Type Spring (19.5-24-36L)
No se pudo cargar la disponibilidad de recogida
Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080
Material:
Measurement System: Metric
Colour: Transluscent Gold
Polyphenylsulfone (PPSU) OMEGA Type Spring (19.5-24-36L) ajustarse a las siguientes Normas/Normas:
Polyphenylsulfone (PPSU) OMEGA Type Compression Springs, with an Inner Diameter of 19.5mm, an Outer Diameter of 24mm, and a Free Length of 36mm, is a component designed for demanding applications. PPSU is a robust thermoplastic known for its exceptional impact strength, thermal stability, and chemical resistance. These springs are engineered to provide reliable compression and durability in environments that require resistance to harsh chemicals and high temperatures. PPSU's hydrolytic stability and ability to withstand repeated sterilisation make these springs particularly suitable for applications in medical, food processing, and other critical industries.
Size:
Inner Diameter (mm) - 19.5mm
Outer Diameter (mm) - 24mm
Free Length (mm) - 36mm
Spring Rate (N/mm) - 1.05
Advantages of Using Polyphenylsulfone (PPSU) OMEGA Type Compression Springs:
High Impact Strength: PPSU offers superior toughness, ensuring the springs can withstand significant impact without damage.
Thermal Stability: Maintains mechanical properties over a wide temperature range, suitable for high-temperature and cryogenic applications.
Chemical Resistance: Resistant to a broad spectrum of chemicals, including acids, bases, and solvents, ensuring durability in corrosive environments.
Hydrolytic Stability: Resists degradation in the presence of water, making it suitable for applications involving frequent exposure to moisture.
Sterilisation Resistance: Can withstand repeated sterilisation processes, ideal for medical and food-related applications.
Biocompatibility: Suitable for use in medical devices due to its non-reactive nature.
Dimensional Stability: Maintains shape and mechanical properties over time, ensuring consistent performance in precise applications.
Specific Applications of Polyphenylsulfone (PPSU) OMEGA Type Compression Springs:
Medical Devices:
Utilised in medical instruments and diagnostic equipment where high precision, biocompatibility, and resistance to sterilisation processes are essential.
Food Processing and Packaging:
Applied in food processing equipment and packaging machinery due to its chemical resistance and ability to withstand sterilisation processes.
Aerospace:
Used in aircraft and spacecraft systems where high strength, thermal stability, and impact resistance are critical.
Automotive Industry:
Employed in automotive components that require toughness, chemical resistance, and the ability to withstand high temperatures.
Industrial Machinery:
Applied in machinery and equipment that experience frequent impacts and require robust components to maintain operational integrity.
Plumbing and Fluid Handling:
Utilised in plumbing and fluid handling systems due to its hydrolytic stability and resistance to chemicals.
Polyphenylsulfone (PPSU) OMEGA Type Compression Springs, with an Inner Diameter of 19.5mm, an Outer Diameter of 24mm, and a Free Length of 36mm, offer a robust and reliable solution for various demanding applications. These springs benefit from PPSU's high impact strength, thermal stability, chemical resistance, hydrolytic stability, and sterilisation resistance. Ideal for use in medical devices, food processing, aerospace, automotive, industrial machinery, and plumbing systems, these springs ensure long-lasting performance and reliability in critical environments.
La ficha técnica de puede descargarse en formato PDF.
Devuelva los componentes en un plazo de 90 días para obtener un reembolso completo. Consulte las condiciones de devolución para obtener más información.
Inner Diameter (mm) | Outside Diameter (mm) | Free Length (mm) | Solid Height (mm) | Spring Rate (mm) |
19.5 | 24 | 36 | 18 | 1.05 |
Tabla de dimensiones
Las dimensiones de Polyphenylsulfone (PPSU) OMEGA Type Spring (19.5-24-36L) en todos los tamaños disponibles se muestran según el dibujo del producto anterior.
