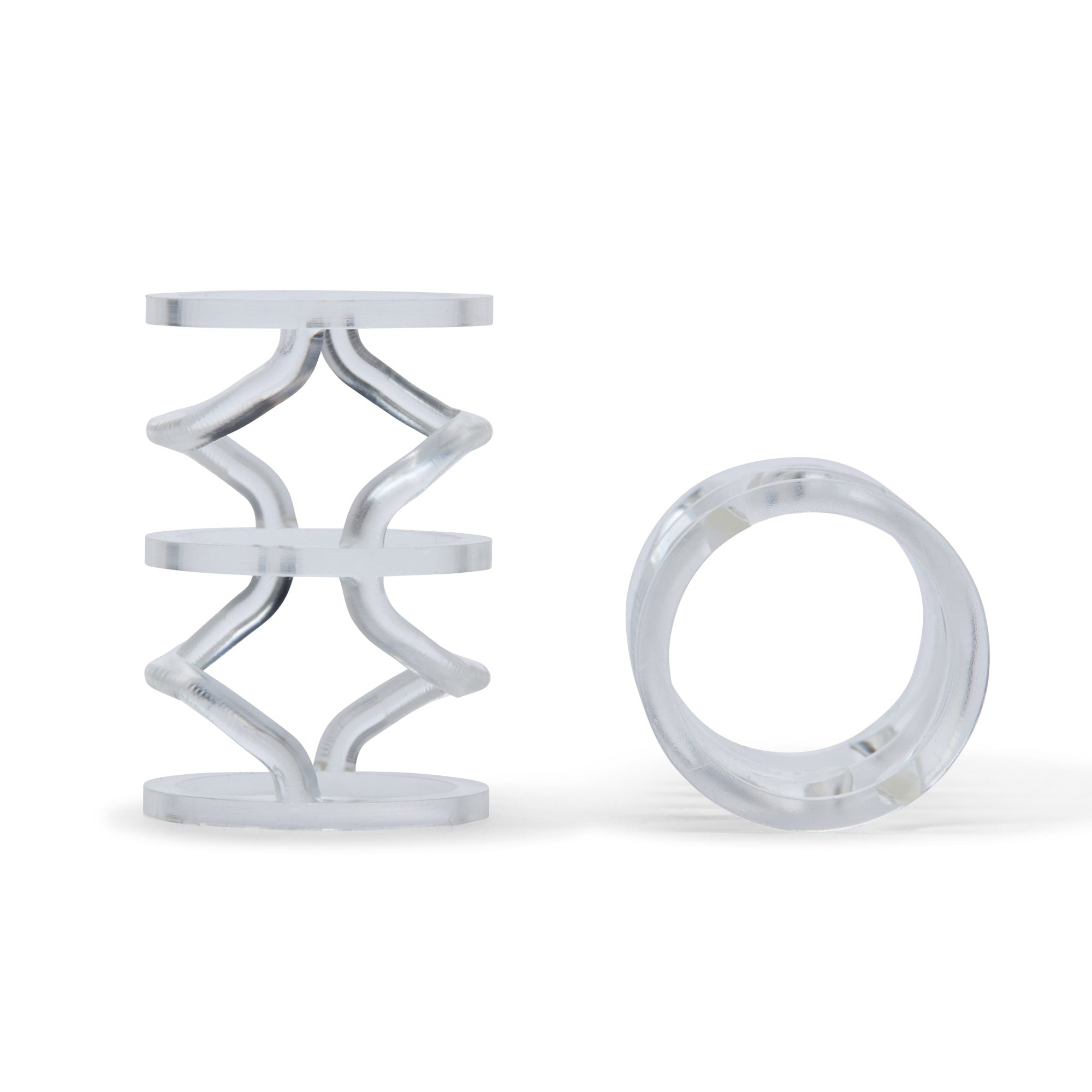

Polycarbonate OMEGA Type Spring (19.5-24-36L)

Disponible en 14 días si hace su pedido hoy.
SKU: PCOCS1952436
Precio normal €6,46 - €9,94 EUR / each Ex. VAT

Descuentos por volumen disponibles:

1 Pieza €9,94
500 Piezas €9,44
1000 Piezas €8,95
2500 Piezas €7,95
5000 Piezas €7,46
10000 Piezas €6,96
20000 Piezas €6,46
30000+ Piezas Contáctanos
Ver más Ver menos
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PC

Measurement System: Metric

Colour: Clear

Continuous use temperature: 115°C/239°F

Flammability: UL94 V-2

Polycarbonate OMEGA Type Spring (19.5-24-36L) ajustarse a las siguientes Normas/Normas:

Polycarbonate OMEGA Type Compression Springs, with an Inner Diameter of 19.5mm, an Outer Diameter of 24mm, and a Free Length of 36mm, is designed for applications requiring high impact resistance, transparency, and excellent mechanical properties. Polycarbonate is known for its toughness, good dimensional stability, and resistance to thermal and environmental stress. These springs are engineered to provide reliable compression and durability in various demanding environments, maintaining their integrity and performance across a broad range of temperatures.

Size:

Inner Diameter (mm) - 19.5mm

Outer Diameter (mm) - 24mm

Free Length (mm) - 36mm

Spring Rate (N/mm) – 0.73-1.12

Advantages of Using Polycarbonate OMEGA Type Compression Springs:

High Impact Resistance: Polycarbonate's exceptional toughness ensures that the springs can withstand significant impact without damage.

Transparency: The material's optical clarity allows for visual inspection and monitoring of the spring's performance in certain applications.

Good Mechanical Strength: Provides high tensile and compressive strength, ensuring robust performance under various loads.

Thermal Stability: Maintains mechanical properties over a wide temperature range, suitable for both high-temperature and cryogenic applications.

Dimensional Stability: The material offers excellent dimensional stability, ensuring the springs maintain their shape and performance over time.

UV Resistance: Resistant to UV radiation, preventing yellowing and degradation from sunlight exposure, which is essential for outdoor applications.

Lightweight: Despite its strength, polycarbonate is lightweight, reducing the overall weight of assemblies and making handling easier.

Specific Applications of Polycarbonate OMEGA Type Compression Springs:

Automotive Industry:

Used in various automotive components where high impact resistance and mechanical strength are required, such as in lighting assemblies and interior mechanisms.

Consumer Electronics:

Applied in devices like cameras and printers where durability and precisionare critical, and optical clarity can aid in visual inspection.

Medical Devices:

Utilised in medical instruments and diagnostic equipment where high impact resistance and dimensional stability ensure reliable performance.

Ideal for components that require consistent spring action and durability.

Industrial Machinery:

Employed in machinery and equipment that experience frequent impacts and require robust components to maintain operational integrity.

Aerospace:

Used in aerospace applications where lightweight and high-strength materials are essential, such as in instrument panels and safety equipment.

Suitable for components exposed to varying environmental conditions.

Construction:

Applied in building materials and systems that require durable, impact-resistant components that can withstand outdoor exposure.

Optical Devices:

Utilised in applications where the transparency of the spring allows for visual inspection and monitoring of the system's internal components.

Polycarbonate OMEGA Type Compression Springs, with an Inner Diameter of 19.5mm, an Outer Diameter of 24mm, and a Free Length of 36mm, offer a robust and reliable solution for various demanding applications. These springs benefit from polycarbonate's high impact resistance, transparency, good mechanical strength, thermal stability, dimensional stability, UV resistance, and lightweight properties. Ideal for use in automotive, consumer electronics, medical devices, industrial machinery, aerospace, construction, and optical devices, these springs ensure long-lasting performance and reliability in critical environments.

La ficha técnica de PC puede descargarse en formato PDF.

Devuelva los componentes en un plazo de 90 días para obtener un reembolso completo. Consulte las condiciones de devolución para obtener más información.

Polycarbonate OMEGA Type Spring (19.5-24-36L)

Dibujo del producto

Inner Diameter (mm) Outside Diameter (mm) Free Length (mm) Solid Height (mm) Spring Rate (mm)
19.5 24 36 18 0.73-1.12

Tabla de dimensiones

Las dimensiones de Polycarbonate OMEGA Type Spring (19.5-24-36L) en todos los tamaños disponibles se muestran según el dibujo del producto anterior.

Key Polycarbonate (PC) Properties

Polycarbonate (PC) Ficha de datos

Siga el enlace siguiente para consultar nuestra hoja de datos PC . Incluye propiedades como la resistencia mecánica, eléctrica, térmica y química.

Descargar PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PC Propiedades clave

  • Exceptional impact resistance - Ideal for general applications.

    Ultra low cost - In comparison with other engineered polymer materials.

    Electrical insulation properties - Great for fastening electrical components.

    Good weight to strength ratio - Specific gravity (1.20).

  • - Operation temperature up to 115°C

    - Low weight Flame resistance (UL94 V-2)

    - Abrasion resistance

    - Hydrolysis resistance

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - Shock resistance
