Material: PA66
Measurement System: Metric
Drive Type: Slotted
White
Continuous use temperature: 100°C Maximum temperature: 170°C
Flammability UL94 HB
Nylon Slotted Grub Screws - DIN 551 ajustarse a las siguientes Normas/Normas:
ISO 4766
DIN 551
CSN 021181
PN 82272
UNI 4766

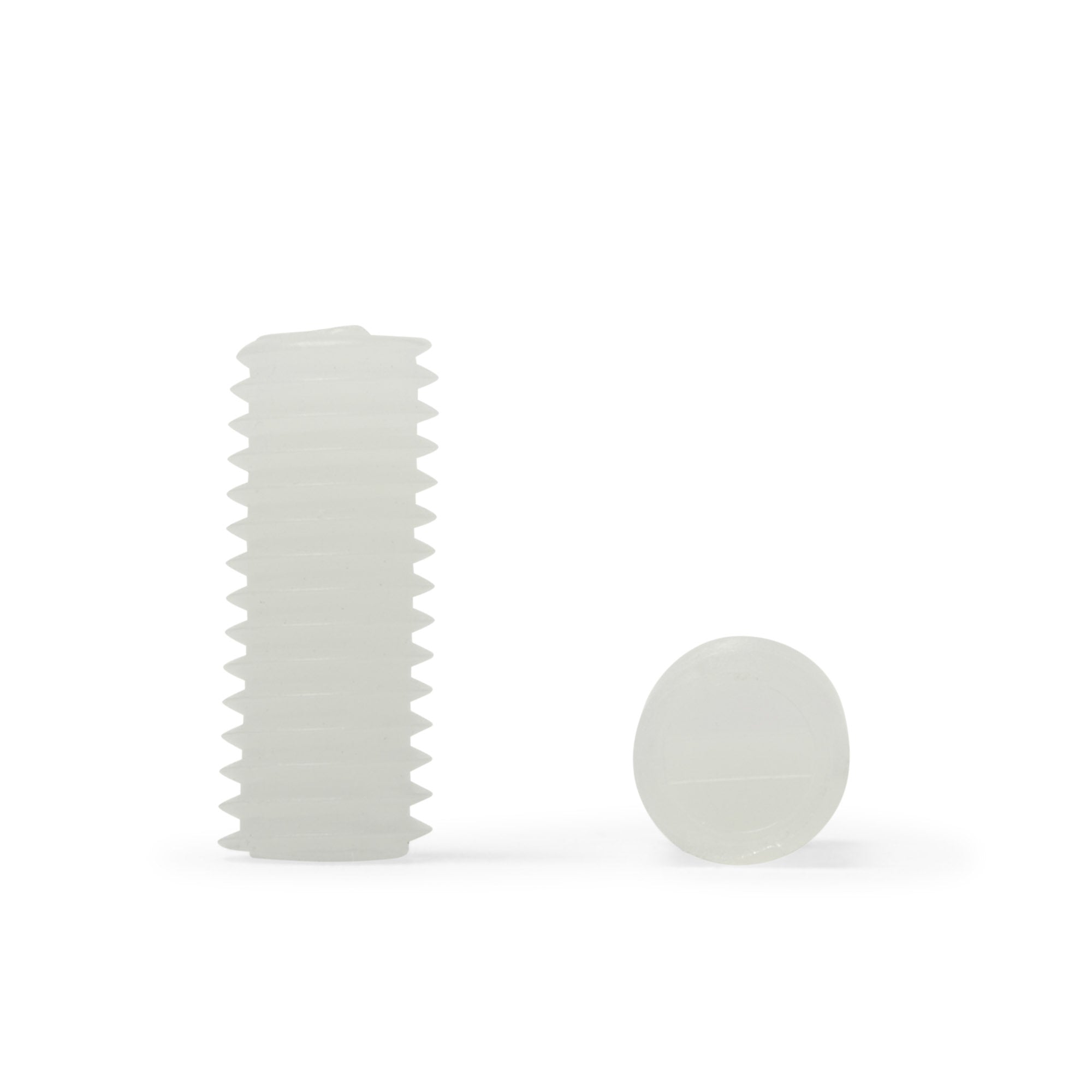

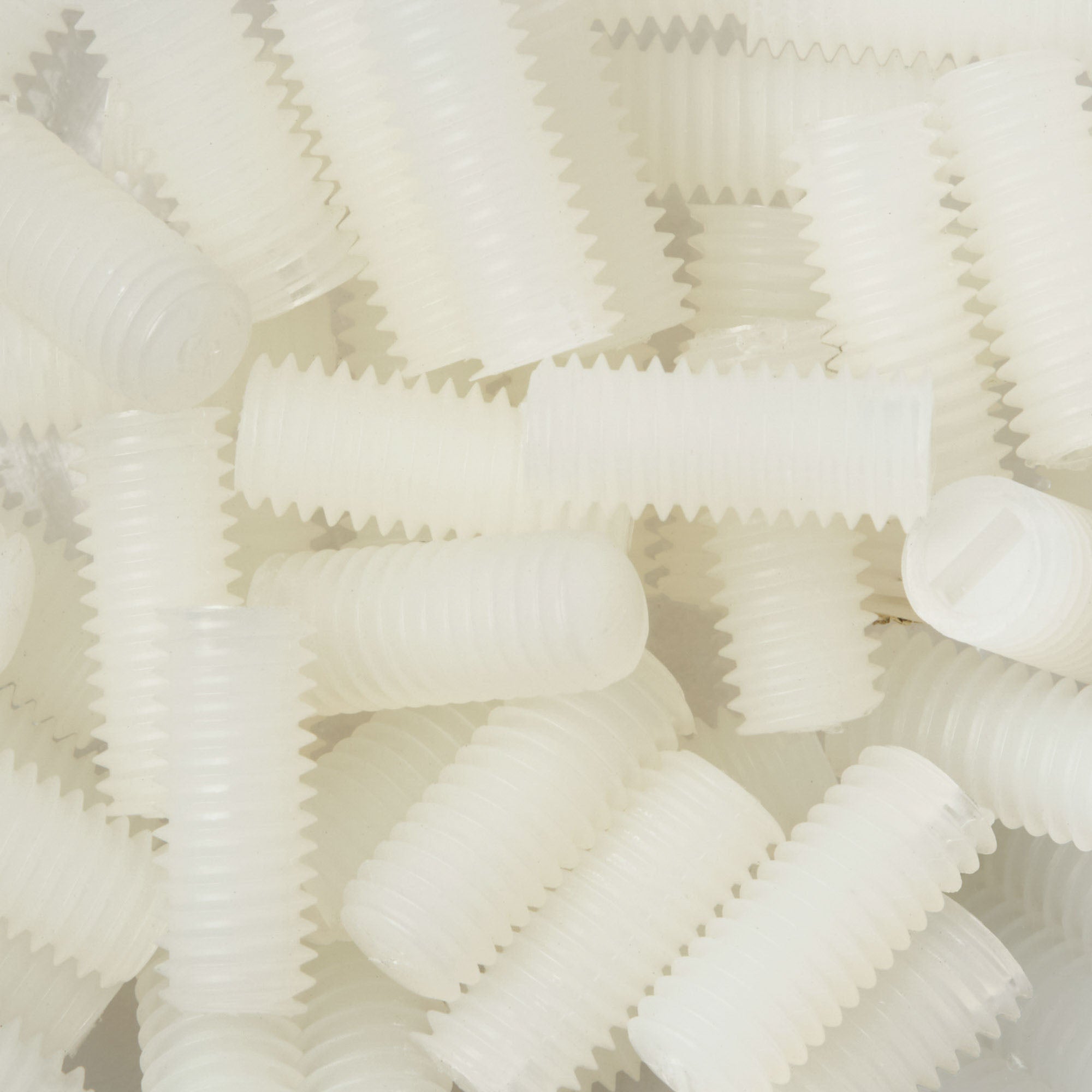

Our nylon slotted grub screws feature a headless design with a straight slot drive, allowing for flush or recessed installation using a flat-bladed screwdriver. Conforming to DIN 551 specifications, they are typically used in applications requiring secure axial positioning of components without protruding hardware, making them ideal for compact assemblies and surface-sensitive systems.
Applications
Nylon slotted grub screws are frequently used in fine mechanical systems, electronics, and laboratory instruments. Their non-conductive, non-magnetic properties make them highly suitable for securing shafts, collars, and rotating parts in electrical or RF-sensitive equipment. These fasteners are often specified in adjustment points or calibration mechanisms in optical, medical, and metrology devices, where minimal thread damage and repeatable load control are essential.
Their usage includes lightweight structural assemblies, insulating hardware for PCB mounting, and plastic-to-plastic fastening, where their chemical resistance and low abrasion characteristics help maintain long-term reliability. They deliver excellent mechanical strength, low water absorption, and dimensional stability across a broad temperature range. These screws also exhibit good resistance to oils, fuels, and most industrial solvents, making them suitable for demanding environments.
Whether your system requires a lightweight locking component, a corrosion-proof positioning screw, or an electrically neutral adjustment point, HPP’s nylon slotted grub screws offer an engineered solution for technical and specialist fastening applications.
La ficha técnica de PA66 puede descargarse en formato PDF.
Devuelva los componentes en un plazo de 90 días para obtener un reembolso completo. Consulte las condiciones de devolución para obtener más información.
Custom Manufacturing
Can't find a component?
We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.
PA66 Propiedades clave
¿Por qué elegir polímeros de alto rendimiento?
-
Más de 50.000 fijaciones en stock
No hay plazos de entrega largos. Tenemos una amplia gama de fijaciones PEEK disponibles para entrega urgente (se envían el mismo día si se piden antes de las 3 de la tarde de lunes a jueves).
Las fijaciones no disponibles para entrega urgente mostrarán la fecha de entrega prevista encima del botón 'añadir al carrito'.
Distribuidor directo del fabricanteSomos un distribuidor directo del fabricante, esto nos permite garantizar precios altamente competitivos y mantener nuestros estantes abastecidos. Todos nuestros productos se fabrican con los más altos estándares y presentan características excepcionales.
Certificado ISO9001Certificado a través de Quality Veritas. High Performance Polymer cumple con el sistema de gestión de calidad ISO9001. Certificados disponibles previa solicitud.
-
Certificados de materiales
Ofrecemos una trazabilidad completa de los materiales y podemos proporcionar certificados que confirmen los datos de los materiales y el número de lote, que pueden rastrearse hasta el fabricante.
Certificado de conformidadTambién proporcionamos un certificado de conformidad a petición, confirmando la norma de fabricación del producto y el material.
