Material: PC

Measurement System: Metric

Colour: Clear

Continuous use temperature: 115°C/239°F

Flammability: UL94 V-2

Polycarbonate OMEGA Type Spring (19.5-24-36L) conform to the following Standards/Norms:

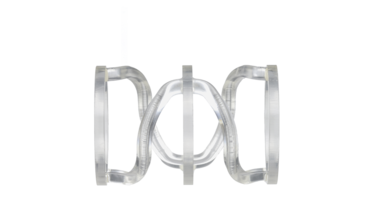

Polycarbonate OMEGA Type Compression Springs, with an Inner Diameter of 19.5mm, an Outer Diameter of 24mm, and a Free Length of 36mm, is designed for applications requiring high impact resistance, transparency, and excellent mechanical properties. Polycarbonate is known for its toughness, good dimensional stability, and resistance to thermal and environmental stress. These springs are engineered to provide reliable compression and durability in various demanding environments, maintaining their integrity and performance across a broad range of temperatures.

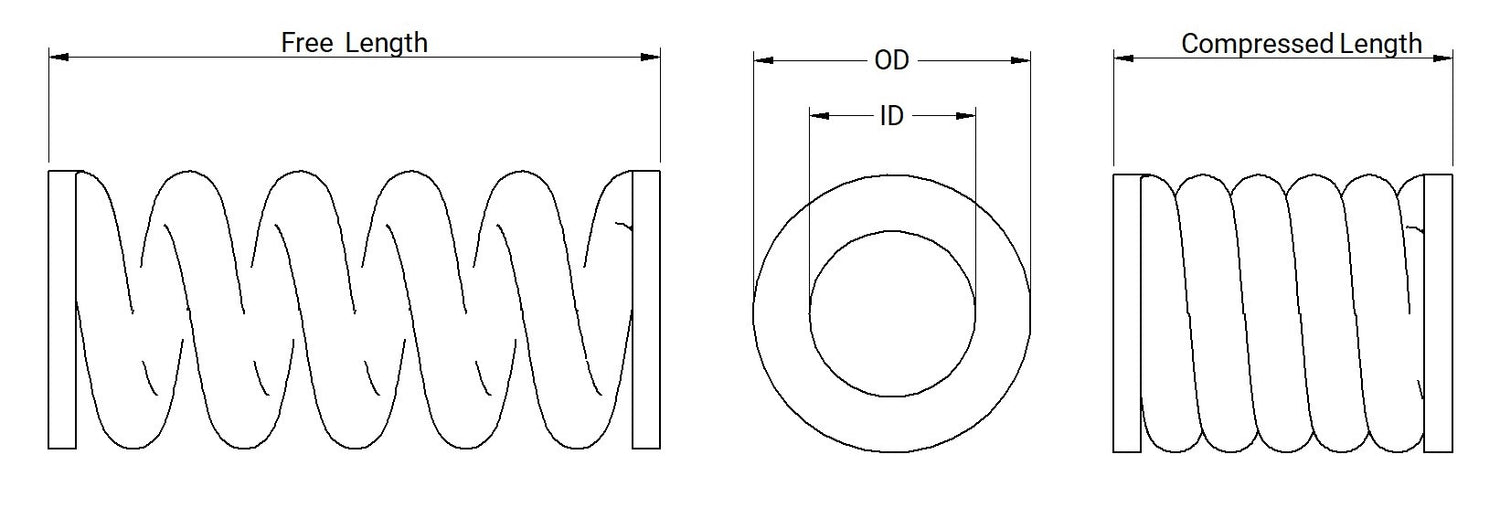

Size:

Inner Diameter (mm) - 19.5mm

Outer Diameter (mm) - 24mm

Free Length (mm) - 36mm

Spring Rate (N/mm) – 0.73-1.12

Advantages of Using Polycarbonate OMEGA Type Compression Springs:

High Impact Resistance: Polycarbonate's exceptional toughness ensures that the springs can withstand significant impact without damage.

Transparency: The material's optical clarity allows for visual inspection and monitoring of the spring's performance in certain applications.

Good Mechanical Strength: Provides high tensile and compressive strength, ensuring robust performance under various loads.

Thermal Stability: Maintains mechanical properties over a wide temperature range, suitable for both high-temperature and cryogenic applications.

Dimensional Stability: The material offers excellent dimensional stability, ensuring the springs maintain their shape and performance over time.

UV Resistance: Resistant to UV radiation, preventing yellowing and degradation from sunlight exposure, which is essential for outdoor applications.

Lightweight: Despite its strength, polycarbonate is lightweight, reducing the overall weight of assemblies and making handling easier.

Specific Applications of Polycarbonate OMEGA Type Compression Springs:

Automotive Industry:

Used in various automotive components where high impact resistance and mechanical strength are required, such as in lighting assemblies and interior mechanisms.

Consumer Electronics:

Applied in devices like cameras and printers where durability and precisionare critical, and optical clarity can aid in visual inspection.

Medical Devices:

Utilised in medical instruments and diagnostic equipment where high impact resistance and dimensional stability ensure reliable performance.

Ideal for components that require consistent spring action and durability.

Industrial Machinery:

Employed in machinery and equipment that experience frequent impacts and require robust components to maintain operational integrity.

Aerospace:

Used in aerospace applications where lightweight and high-strength materials are essential, such as in instrument panels and safety equipment.

Suitable for components exposed to varying environmental conditions.

Construction:

Applied in building materials and systems that require durable, impact-resistant components that can withstand outdoor exposure.

Optical Devices:

Utilised in applications where the transparency of the spring allows for visual inspection and monitoring of the system's internal components.

Polycarbonate OMEGA Type Compression Springs, with an Inner Diameter of 19.5mm, an Outer Diameter of 24mm, and a Free Length of 36mm, offer a robust and reliable solution for various demanding applications. These springs benefit from polycarbonate's high impact resistance, transparency, good mechanical strength, thermal stability, dimensional stability, UV resistance, and lightweight properties. Ideal for use in automotive, consumer electronics, medical devices, industrial machinery, aerospace, construction, and optical devices, these springs ensure long-lasting performance and reliability in critical environments.

The PC data sheet is available as a PDF to download below.
