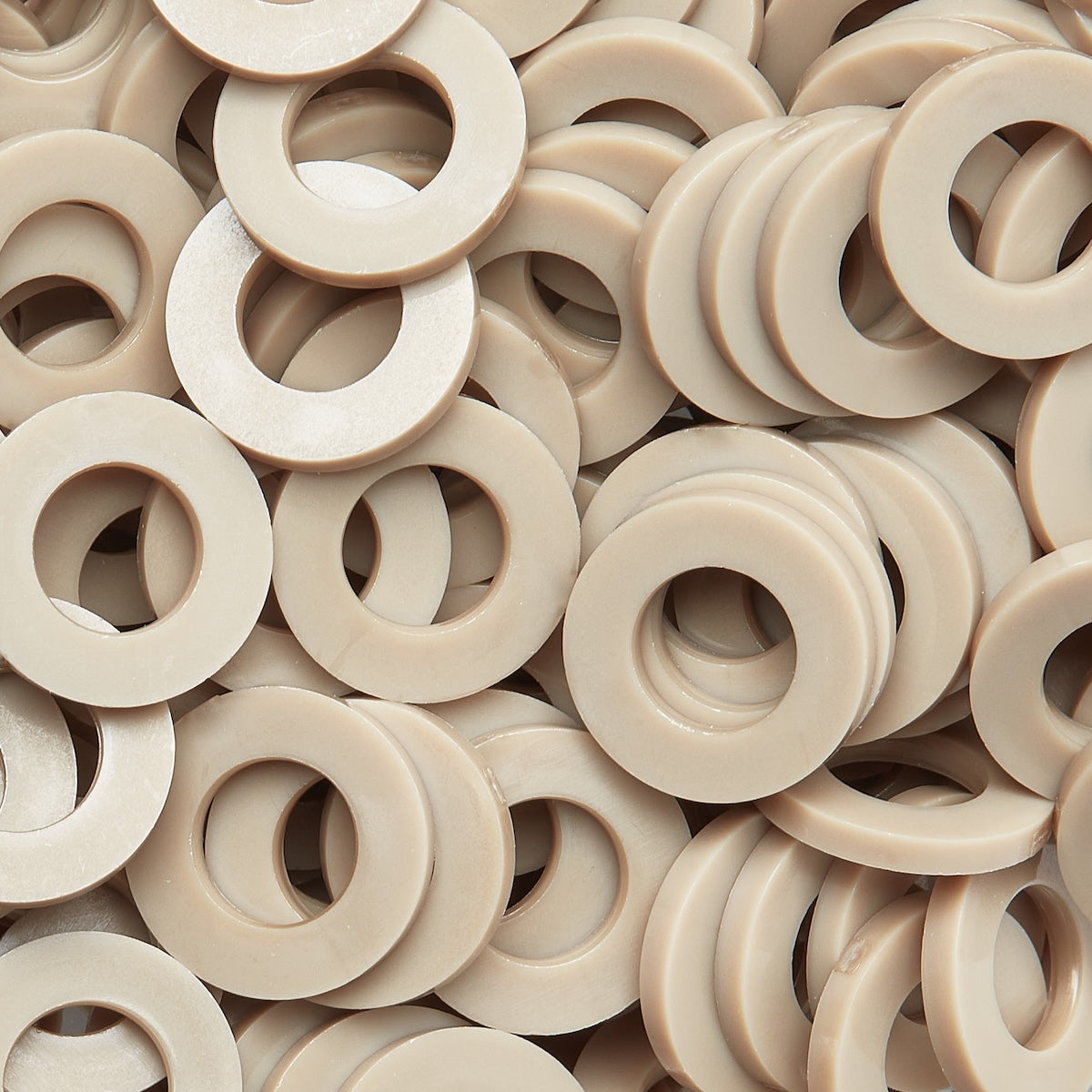

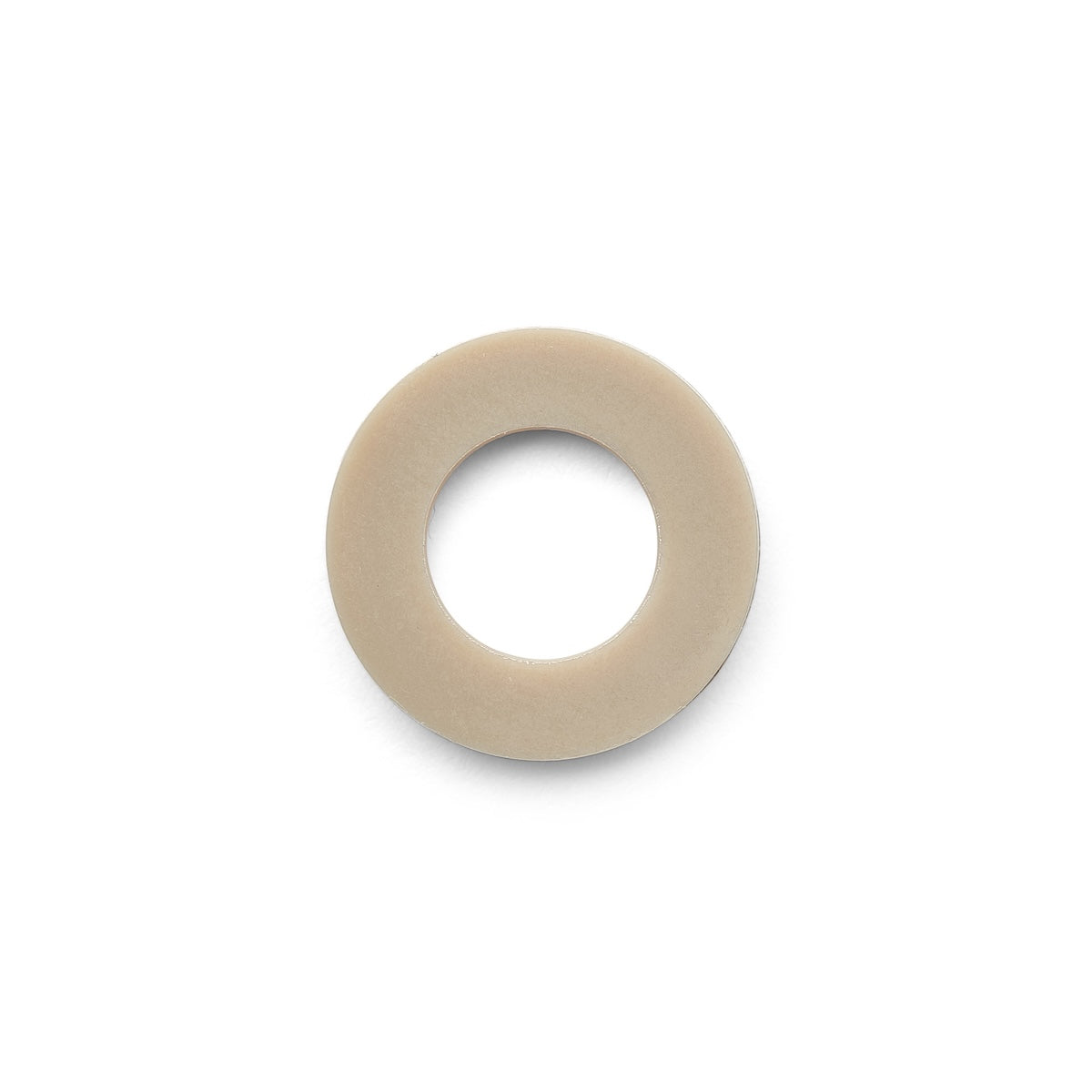

PEEK (GF30) Flat Washers - DIN 125 A

Manufactured to order.
SKU: PKGFWAM3
Regular price €3,21 - €4,94 EUR / each Ex. VAT

Volume Discounts Available:

1 pc €4,94
20 pcs €4,69
50 pcs €4,45
100 pcs €3,95
250 pcs €3,71
500 pcs €3,46
1000 pcs €3,21
2000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PEEK GF30

Measurement System: Metric

Colour: Natural/Beige

Continuous use temperature: 260°C/500°F

Flammability: UL94 V-0

PEEK (GF30) Flat Washers - DIN 125 A conform to the following Standards/Norms:

ISO 7089

DIN 125 A

CSN 021702

PN 82006

UNI 6592

PEEK (GF30) flat washers are high-performance components that are used in various industries that require a reliable sealing solution with excellent mechanical, thermal, and chemical properties. These washers are known for their high strength, stiffness, and resistance to harsh environments, making them an ideal choice for applications that demand high-performance fasteners.

One of the industries that use PEEK (GF30) flat washers is the aerospace industry. These washers are used in aircraft components, such as engine parts, wing assemblies, and interior cabin fittings, due to their high strength-to-weight ratio, excellent thermal stability, and resistance to chemicals and abrasion. PEEK (GF30) flat washers are also used in the manufacture of satellites and spacecraft due to their ability to withstand extreme temperatures and harsh radiation environments.

The automotive industry also utilizes PEEK (GF30) flat washers. These washers are used in various automotive components, such as engine components, suspension systems, and fuel system components, due to their excellent mechanical properties, resistance to high temperatures and chemicals, and low moisture absorption. PEEK (GF30) flat washers are also used in electric and hybrid vehicles due to their excellent electrical insulation properties and ability to withstand high voltage.

The medical industry is another sector that uses PEEK (GF30) flat washers. These washers are used in medical implants, such as spinal fusion cages, joint replacements, and dental implants, due to their biocompatibility, high strength, and resistance to wear and tear. PEEK (GF30) flat washers are also used in surgical instruments and diagnostic equipment due to their excellent chemical resistance and dimensional stability.

The semiconductor industry also uses PEEK (GF30) flat washers. These washers are used in semiconductor processing equipment, such as wafer handling equipment and vacuum chamber components, due to their excellent dimensional stability, resistance to chemicals, and high purity properties.

Overall, PEEK (GF30) flat washers are used in various industries that require high-performance fasteners that can withstand harsh environments. With their excellent mechanical, thermal, and chemical properties, PEEK (GF30) flat washers are an ideal choice for applications that demand high strength, stiffness, and resistance to wear and tear.

The PEEK GF30 data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

PEEK (GF30) Flat Washers - DIN 125 A

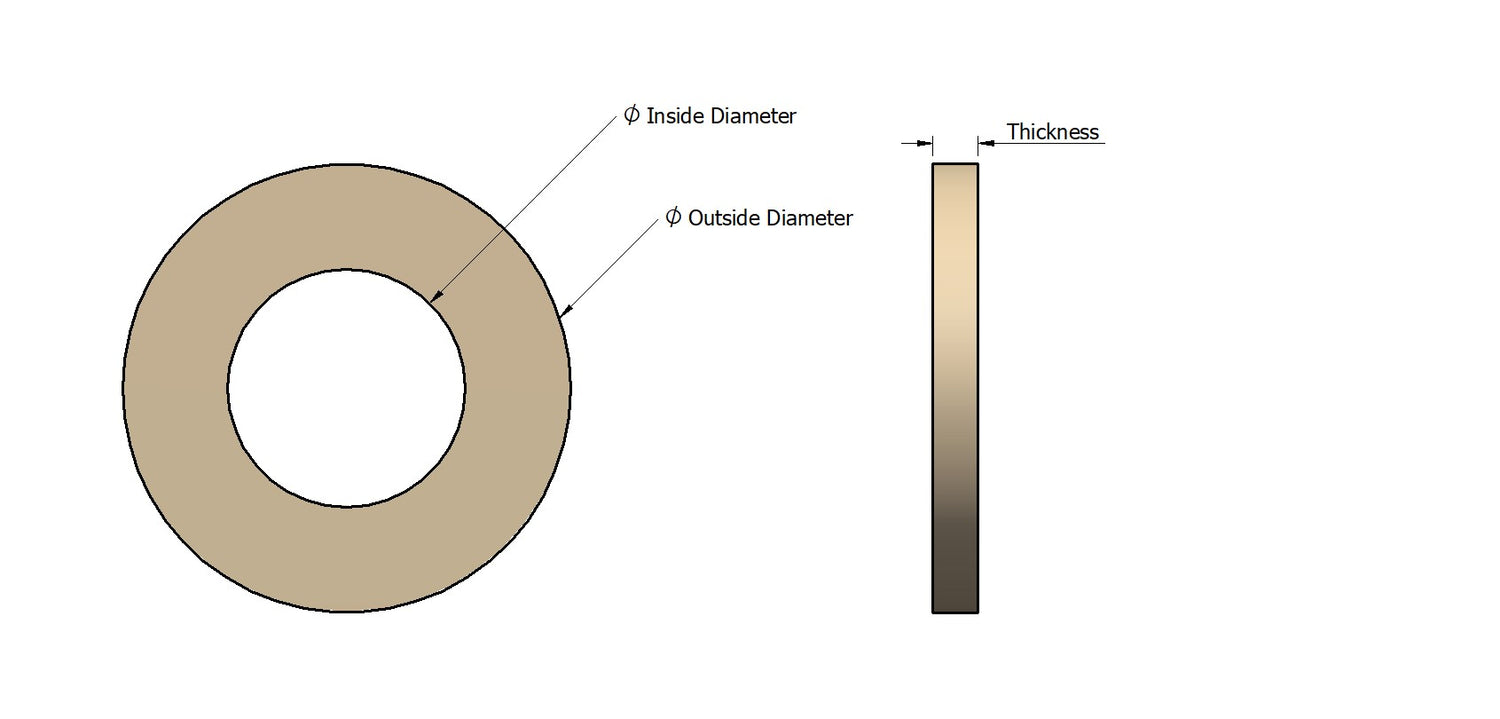

Product Drawing

Flat Washer Dimension Table (ISO7089/DIN125A)
M Size Inside Diameter (mm) Outside Diameter (mm) Thickness (mm)
M1.6 1.7 3.7 0.25
M2 2.1 4.0 0.5
M2.6 2.7 6.0 0.5
M3 3.2 7.0 0.5
M4 4.3 9.0 0.8
M5 5.3 10.0 1.0
M6 6.4 12.5 1.6
M8 8.4 17.0 1.6
M10 10.5 21.0 2.0
M12 13.0 24.0 2.5
M16 17.0 30.0 3.0

Dimension Table

Dimensions for PEEK (GF30) Flat Washers - DIN 125 A in all available sizes are shown according to the product drawing above.

Key Polyether Ether Ketone GF30 (PEEK GF30) - 30% Glass Fibre Reinforced Properties

Polyether Ether Ketone GF30 (PEEK GF30) - 30% Glass Fibre Reinforced Datasheet

Follow the link below to view our PEEK GF30 data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PEEK GF30 Key Properties

  • Exceptional Tensile strength - PEEK GF30 components are reinforced with 30% glass-fibre. This provides all the desired unfilled PEEK characteristics as well as a vast increase in strength and stiffness. PEEK GF30 is a true metal replacement.

    Exceptional dimensional stability - Even at high temperatures (260°).

    Low Radio Frequency noise - Comparable to air.

    Excellent weight to strength ratio - Specific gravity (1.30).

  • - High heat operation (260°C)

    - Exceptional chemical resistance

    - Ultra low weight

    - Flame resistance

    - Abrasion resistance

    - Hydrolysis resistance

  • - Highly resistant to radiation

    - Non-Magnetic

    - Very low outgassing in high vacuum

    - Low thermal conductivity

    - Non-Corrosive

    - Food safe (FSA/FDA Approved)

ISO 9001 Certified

Certified through Quality Veritas. High Performance Polymer conforms to the ISO9001 quality management system. Certificates available on request.

Certificate Of Conformity

Product certificate of conformity available on request, confirming the product manufacturing standard and material.

Material Certificates

Full material traceability and certification confirming the material data and raw material batch number, which can be traced back to the manufacturer.
