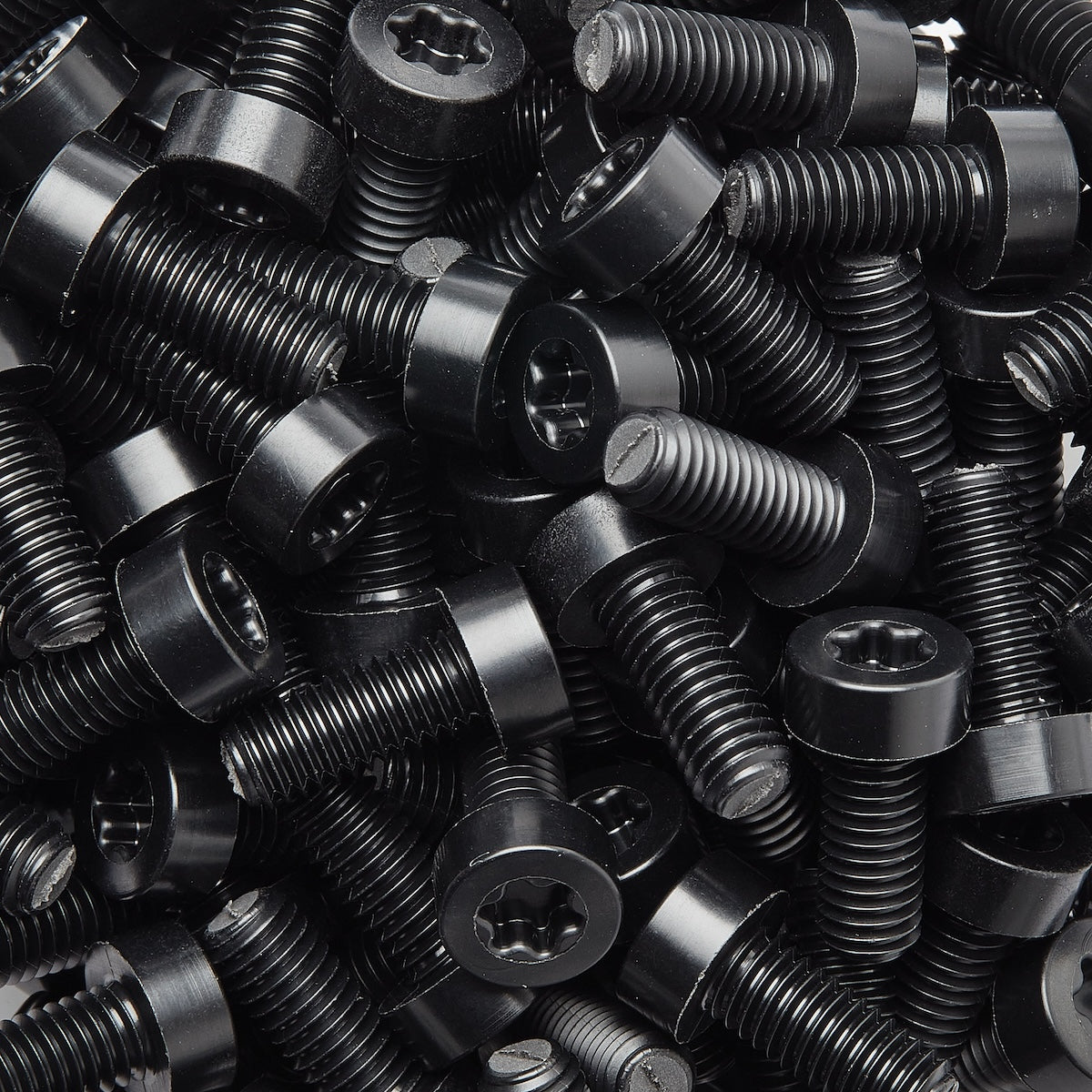

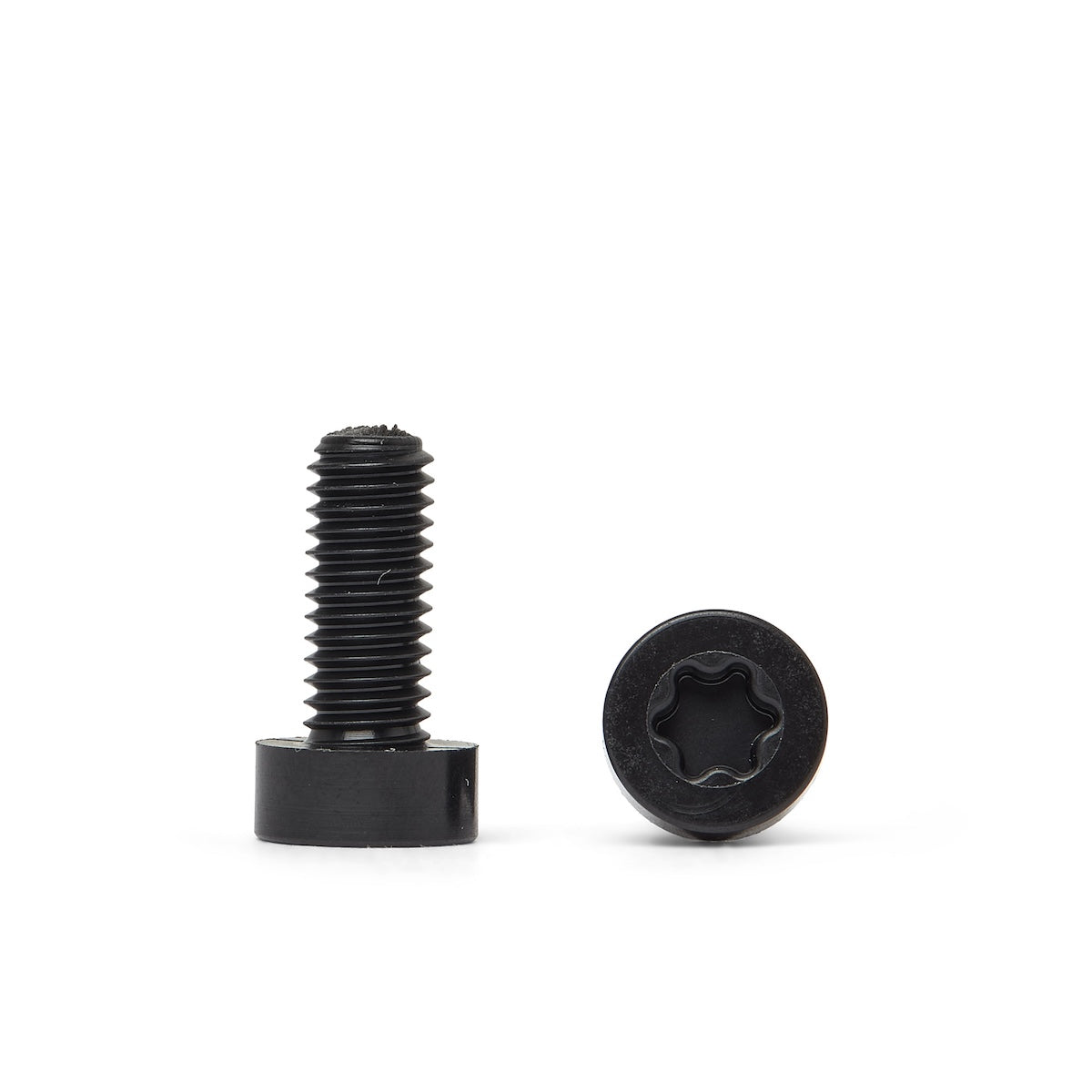

RENY Torx-Hexalobular Low Socket-Cylinder Head Cap Screw - ISO 14580

1000 In Stock
SKU: RNYLT306
Regular price €0,57 - €0,87 EUR / each Ex. VAT

Volume Discounts Available:

1 pc €0,87
500 pcs €0,83
1000 pcs €0,78
2500 pcs €0,70
5000 pcs €0,65
10000 pcs €0,61
20000 pcs €0,57
30000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: RENY

Measurement System: Metric

Drive Type: Torx/Hexalobular (6 Point)

Colour: Black

Continuous use temperature: 105°C/221°F

Flammability: UL94 HB

RENY Torx-Hexalobular Low Socket-Cylinder Head Cap Screw - ISO 14580 conform to the following Standards/Norms:

ISO 14580

We have a range of RENY Low Torx head screws available on short lead times and at highly competitive prices.

The standard drive type available for these screws is 6-point hexalobular (Torx) drive by use of a Torx key (the drive sizes can be found on the dimensions table).

Our RENY Low Torx Head screws are often used when a precise torque is needed as the Torx drive type allows for precise driving even in unfavourable conditions.

For all data and torque recommendations for this screw type, please view our data sheet (a link is provided below).

If you have any questions, please contact us.

What are RENY Low Torx Head Screws?

RENY low Torx head screws are screws with a cylindrical head and a Torx socket in the center. They are used to fasten two or more parts together and are tightened using a Torx driver.

Torx head screws are known for their strong holding power and are often used in applications where high torque is required. They are also resistant to slipping, which makes them well-suited for use in high-vibration environments.

RENY is a brand of fasteners that offers a wide range of low Torx head screws in various sizes and materials to suit different needs. Their low Torx head screws are made of strong, durable materials such as steel or stainless steel and are available with a range of finishes to suit different applications. They are known for producing high-quality products that are suitable for use in a variety of industries.

Low Torx head screws are commonly used in a variety of industries, including construction, manufacturing, and automotive. They are often used to fasten components such as hinges, handles, and brackets to doors, cabinets, and other structures. They can also be used to fasten electrical components and other hardware in place.

The RENY data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

RENY Torx-Hexalobular Low Socket-Cylinder Head Cap Screw - ISO 14580

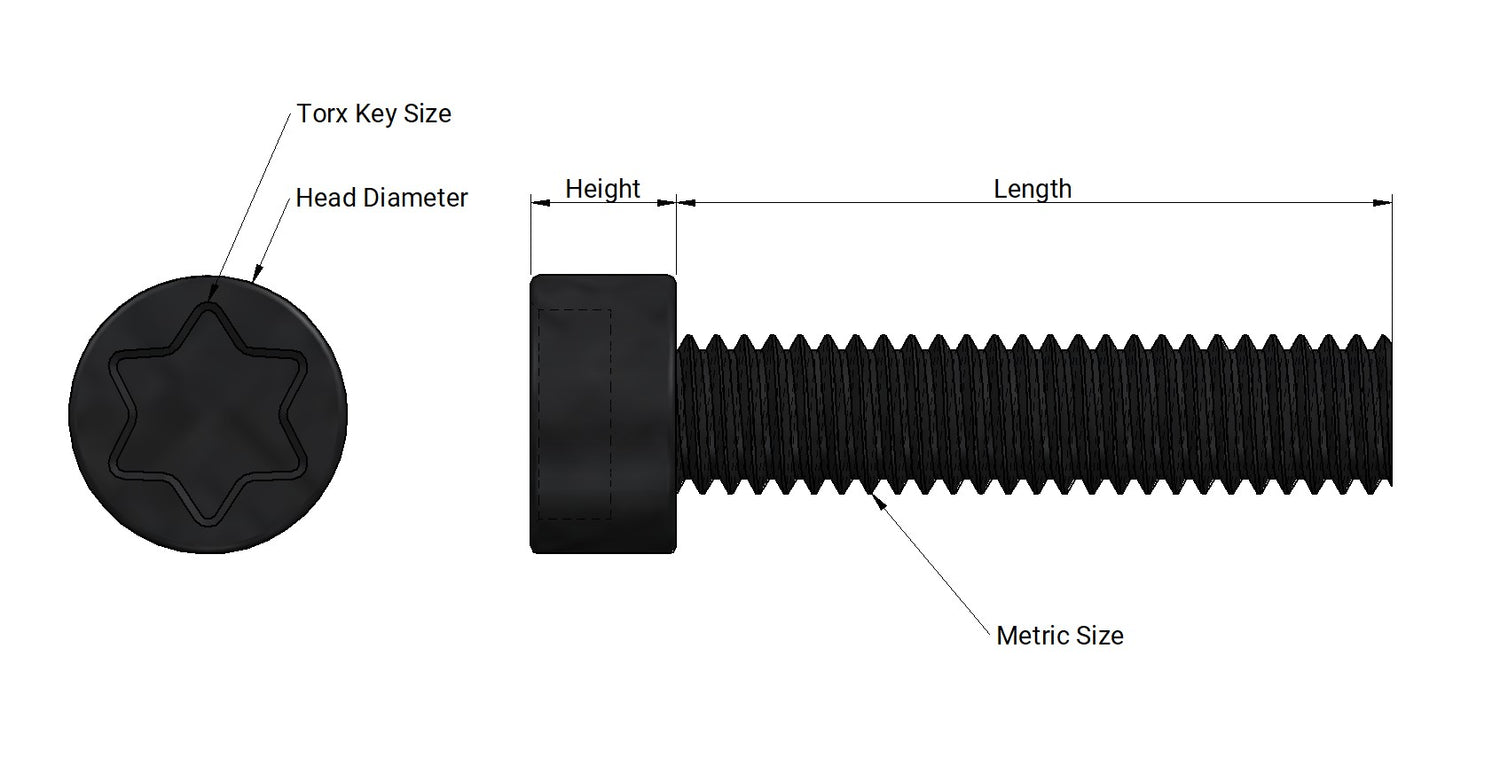

Product Drawing

Low Torx Socket Cylinder Screw Dimension Table (ISO14580)
M Size Pitch (mm) Head Diameter (mm) Head Height (mm) Torx Size (mm)
M2 0.40 3.6 1.55 6
M2.5 0.45 4.3 1.85 8
M3 0.50 5.5 2.40 10
M4 0.70 7.0 3.10 20
M5 0.80 8.5 3.65 25
M6 1.00 10.0 4.40 30
M8 1.25 12.5 5.80 45
M10 1.50 15.5 6.90 50

Dimension Table

Dimensions for RENY Torx-Hexalobular Low Socket-Cylinder Head Cap Screw - ISO 14580 in all available sizes are shown according to the product drawing above.

Key RENY MXD6 - 50% Glass Fibre Reinforced Nylon Properties

RENY Countersunk Flat Head Screws - High Performance Polymer-Plastic Fastener Components

RENY MXD6 - 50% Glass Fibre Reinforced Nylon Datasheet

Follow the link below to view our RENY data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

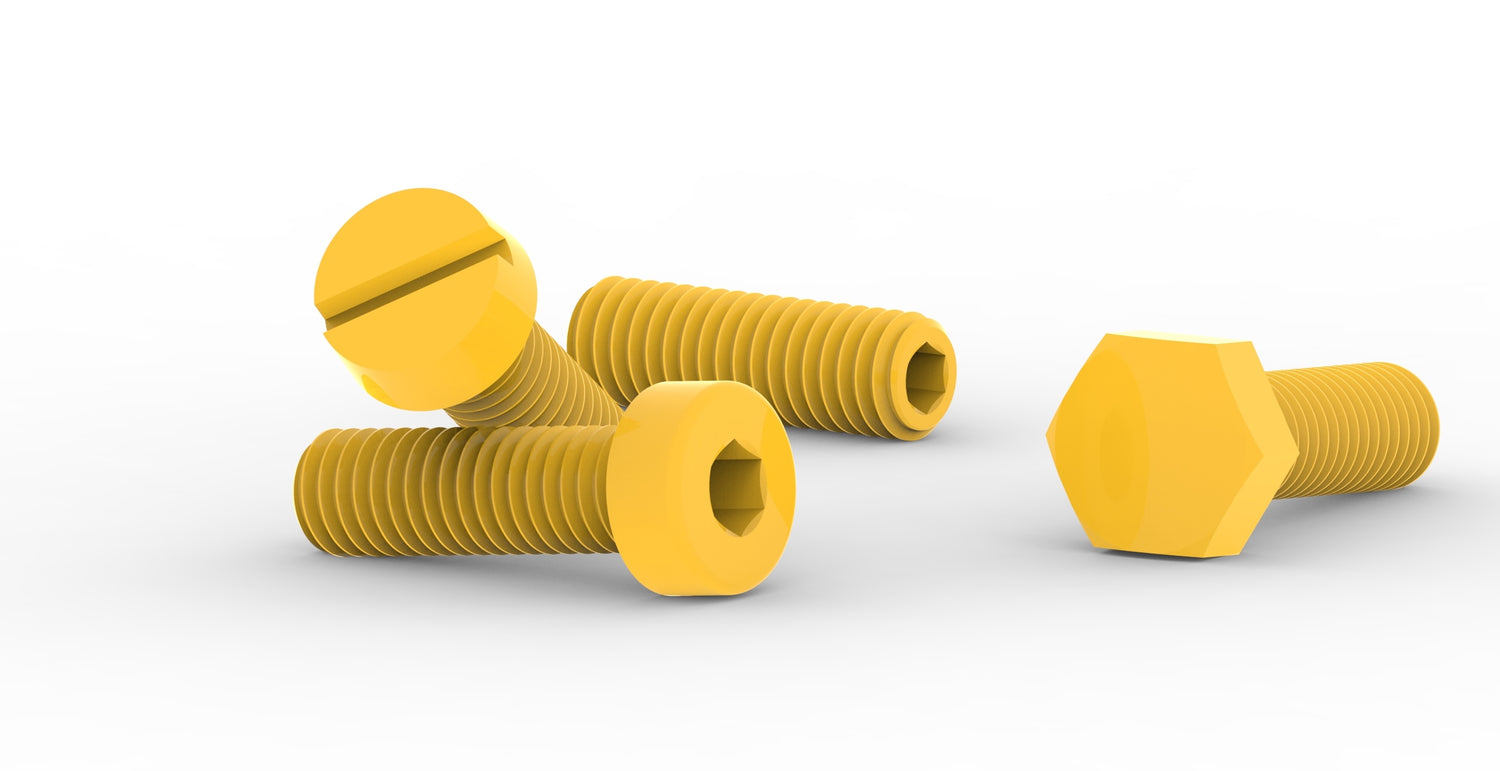

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

RENY Key Properties

  • High Tensile Strength – RENY is among the highest performing polymer screws in terms of tensile strength on the market today (285Mpa).

    Low cost - In comparison to other engineered polymer, such as PPS, PI and PEEK.

    Low water absorption – especially when compared to Nylon 6/6, this allows dimensional stability and mechanical strength to remain high even under high water absorption environments.

    Excellent weight to strength ratio - Specific gravity (1.65).

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - High heat operation (105°C)

    - Ultra low weight

  • - Flame resistance (UL94 HB)

    - Hydrolysis resistance
