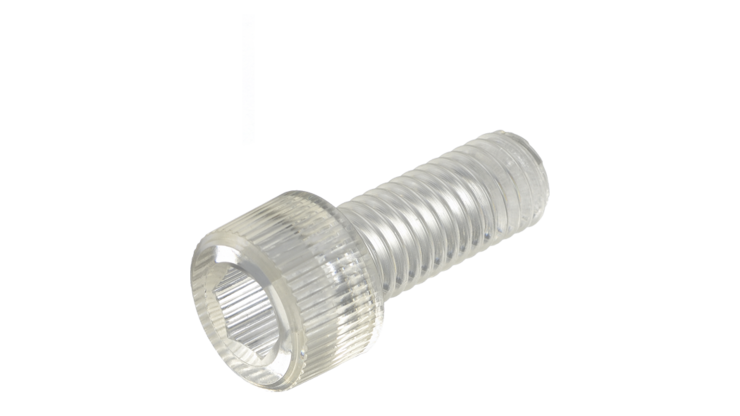

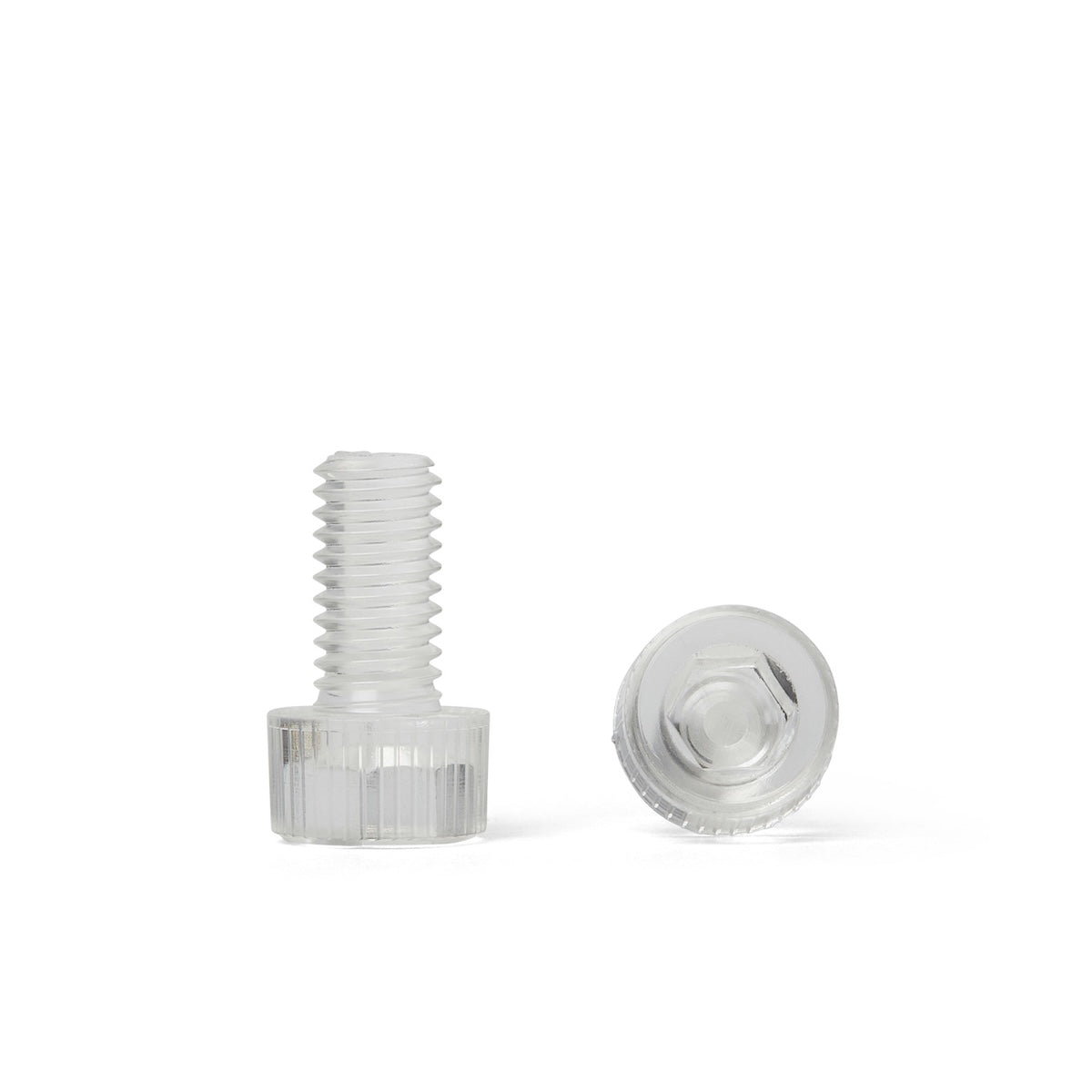

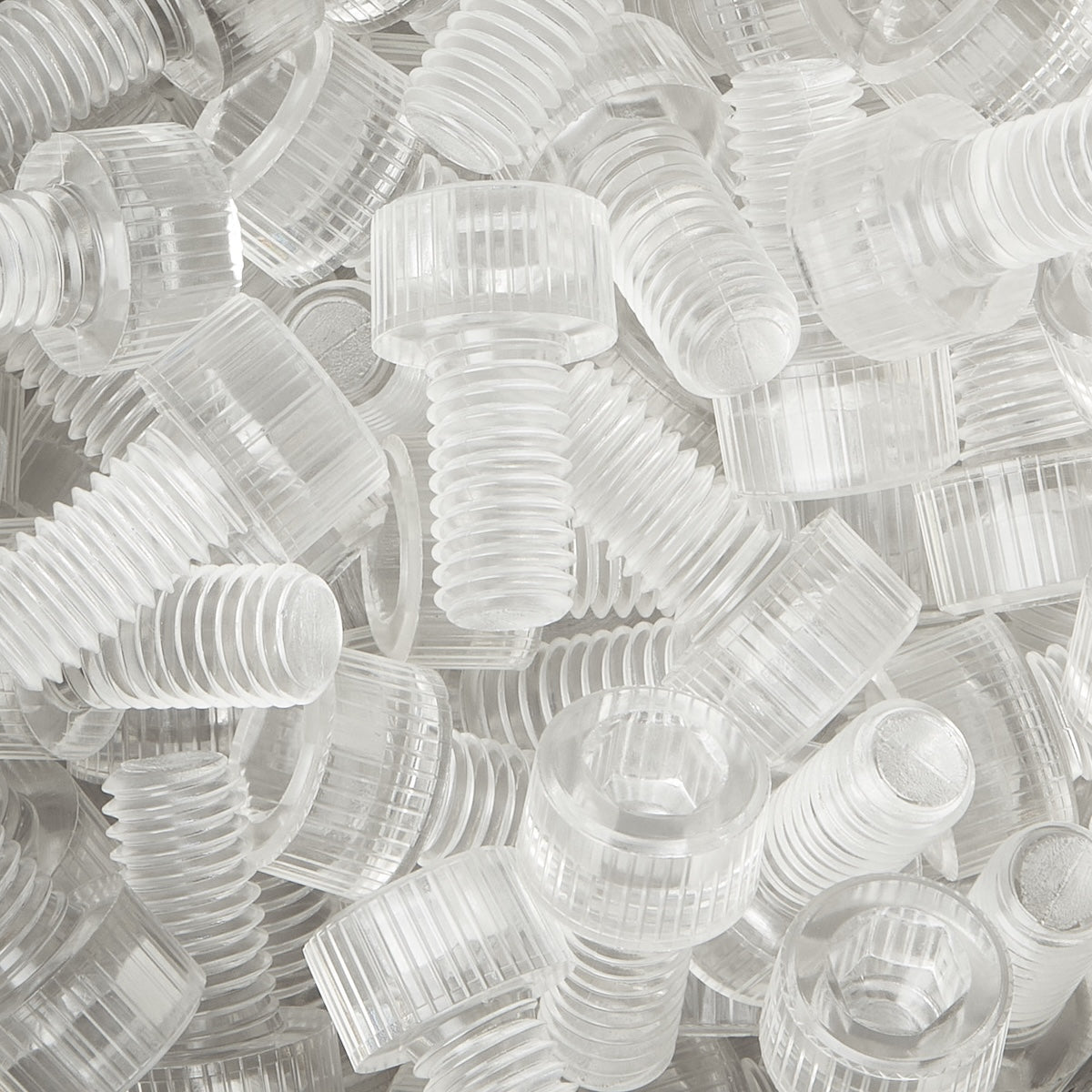

Polycarbonate Hex Socket-Cylinder Head Cap Screw

2 in stock now, more available within 14 days.
SKU: PCSH306
€0,31 EUR / each Ex. VAT

Instant Quote Guarantee:
Submit a request for quote online by clicking the button below and it'll be delivered to your inbox within 5 mins.

Request For Quote

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Polycarbonate Hex Socket-Cylinder Head Cap Screw

Product Drawing

Socket Head Cap Screw Dimension Table (ISO4762/DIN912)
M Size Pitch (mm) Head Diameter (mm) Head Height (mm) Drive Size (mm)
M1.6 0.35 3.0 1.6 1.5
M2 0.40 3.8 2.0 1.5
M2.5 0.45 4.5 2.5 2.0
M3 0.50 5.5 3.0 2.5
M4 0.70 7.0 4.0 3.0
M5 0.80 8.5 5.0 4.0
M6 1.00 10.0 6.0 5.0
M8 1.25 13.0 8.0 6.0
M10 1.50 16.0 10.0 8.0
M12 1.75 18.0 12.0 10.0
M14 2.00 21.0 14.0 12.0
M16 2.00 24.0 16.0 14.0

Dimension Table

Dimensions for Polycarbonate Hex Socket-Cylinder Head Cap Screw in all available sizes are shown according to the product drawing above.

Polycarbonate (PC) Datasheet

Follow the link below to view our PC data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

PC Key Properties

  • Exceptional impact resistance - Ideal for general applications.

    Ultra low cost - In comparison with other engineered polymer materials.

    Electrical insulation properties - Great for fastening electrical components.

    Good weight to strength ratio - Specific gravity (1.20).

  • - Operation temperature up to 115°C

    - Low weight Flame resistance (UL94 V-2)

    - Abrasion resistance

    - Hydrolysis resistance

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - Shock resistance
