Home » Polyamide PA66 (Nylon) Flanged Bushing
HPP PA®

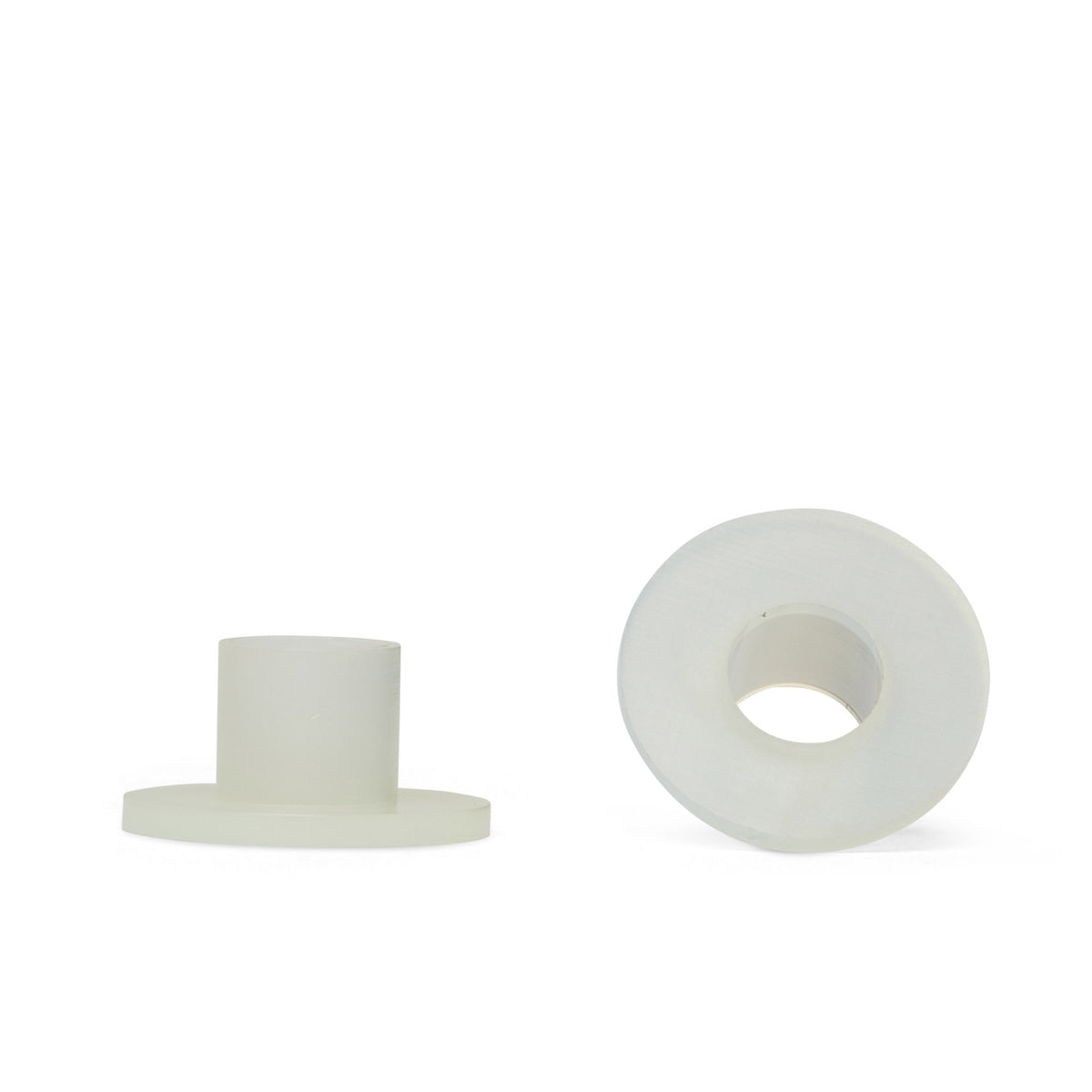

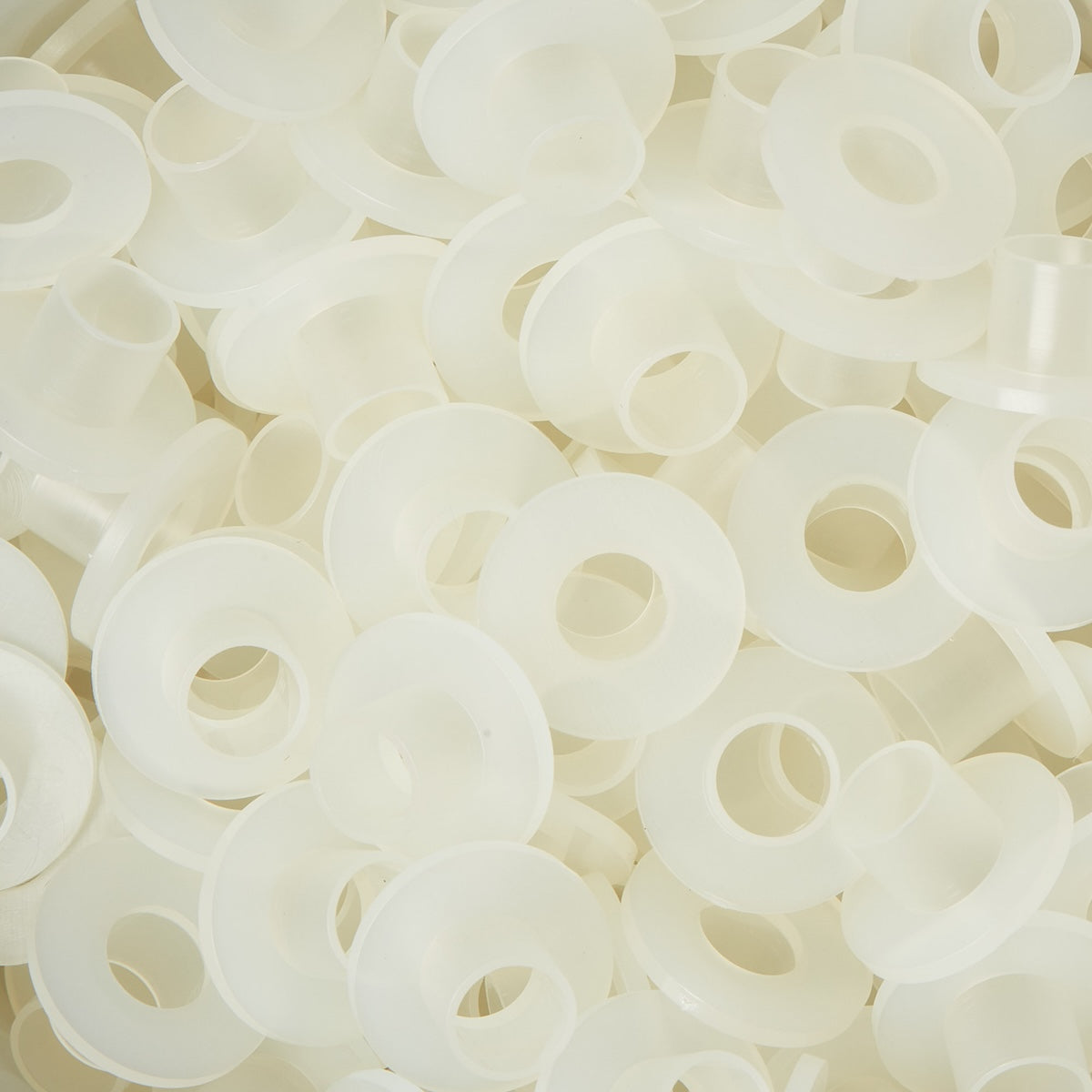

Polyamide PA66 (Nylon) Flanged Bushing

797 In Stock
SKU: PAFLBU4
€0,09 - €0,14 EUR / each Ex. VAT

Volume Discounts Available:

1 pc €0,14
500 pcs €0,13
1000 pcs €0,13
2500 pcs €0,11
5000 pcs €0,11
10000 pcs €0,10
20000 pcs €0,09
30000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PA66

Measurement System: Metric

Natural

Continuous use temperature: 100°C Maximum temperature: 170°C

Flammability UL94 HB

Polyamide PA66 (Nylon) Flanged Bushing conform to the following Standards/Norms:

The Polyamide PA66 (Nylon) Flanged Bushing, available in nominal diameters of 4mm, 5mm, and 6mm, is a versatile component renowned for its mechanical strength, high-temperature resistance, and low moisture absorption. PA66 stands out from other polyamide grades due to its higher rigidity and melting point, making it particularly suitable for applications involving significant stress and elevated temperatures. While other grades such as PA6 perform well, PA66 offers enhanced toughness and dimensional stability, particularly in more demanding environments where heat, moisture, and chemical exposure are factors.

Nominal Diameter (mm) - 4mm, 5mm, and 6mm

Advantages of Using Polyamide PA66 (Nylon) Flanged Bushing

  • High mechanical strength and rigidity for optimal performance under load.
  • Superior thermal stability, retaining its properties in high-temperature conditions.
  • Excellent resistance to moisture, ensuring dimensional stability in wet or humid environments.
  • Good chemical resistance, making it durable in the presence of oils, greases, and solvents.
  • Wear-resistant, extending the lifespan of components in dynamic applications.

Applications of Polyamide PA66 (Nylon) Flanged Bushing
PA66 flanged bushings are commonly used in automotive and aerospace sectors to support and align shafts in high-stress, high-temperature conditions, such as engine assemblies and suspension systems. They are also widely used in marine applications due to their resistance to moisture and corrosion, ensuring long-term performance in humid and saltwater environments. In industrial machinery, these bushings provide reliable performance in rotating or sliding components, reducing wear and improving the durability of mechanical assemblies. Additionally, PA66 flanged bushings are used in electronic applications for insulating and securing components while resisting the effects of heat and chemicals.

Polyamide PA66 (Nylon) Flanged Bushings, available in nominal diameters of 4mm, 5mm, and 6mm, they provide exceptional mechanical strength, wear resistance, and thermal stability, making them suitable for challenging environments in automotive, aerospace, marine, and industrial applications. Their low moisture absorption and excellent chemical resistance ensure long-lasting reliability, even in harsh conditions. With their ability to perform under stress and high temperatures, PA66 bushings offers a versatile solution for various demanding applications.

The PA66 data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.
Polyamide PA66 (Nylon 66) Flanged Bushing Dimension Table
Nominal Diameter (mm) Total Diameter (mm) Outside Diameter of Bushing (mm) Inside Diameter of Bushing (mm) Total Height (mm) Flange Height (mm)
4 9 5 4 4 1
5 12 6 5 6 1
6 14 6.5 6 6.5 1.5

Dimension Table

Dimensions for Polyamide PA66 (Nylon) Flanged Bushing in all available sizes are shown according to the product drawing above.

Key Polyamide Nylon (PA66) Properties

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PA66 Key Properties

  • Polyamide Nylon (PA66) is distinguished by its superior mechanical strength and stiffness, making it an excellent material for applications that require high load-bearing capacity and dimensional stability. PA66 has a higher melting point compared to other nylon grades, which contributes to its enhanced rigidity and durability. This property is particularly beneficial in engineering applications such as automotive components, industrial machinery parts, and structural elements, where materials must maintain their form and performance under heavy mechanical stress and at elevated temperatures.

  • PA66 is also known for its excellent wear and abrasion resistance, which makes it ideal for applications involving continuous friction and contact. Its ability to resist surface degradation ensures that components made from PA66, such as gears, bushings, and bearings, have a long service life with minimal maintenance requirements. This property is especially valuable in high-wear environments like conveyor systems, mechanical assemblies, and moving parts, where maintaining operational efficiency and reducing downtime are critical.

  • Another key property of Polyamide Nylon (PA66) is its high chemical and thermal resistance. PA66 can withstand exposure to a wide range of chemicals, including oils, greases, and solvents, without degrading, making it suitable for use in chemical processing equipment and automotive fuel systems. Additionally, PA66's ability to retain its mechanical properties at elevated temperatures makes it ideal for applications that involve heat, such as engine components and electrical insulators. The combination of chemical and thermal resistance ensures that PA66 performs reliably in harsh and demanding environments, providing long-term durability and stability.
