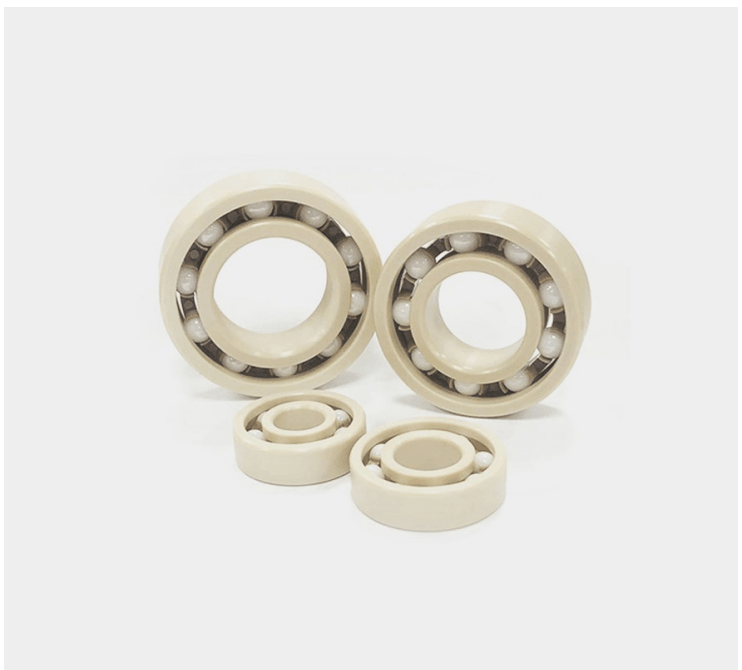

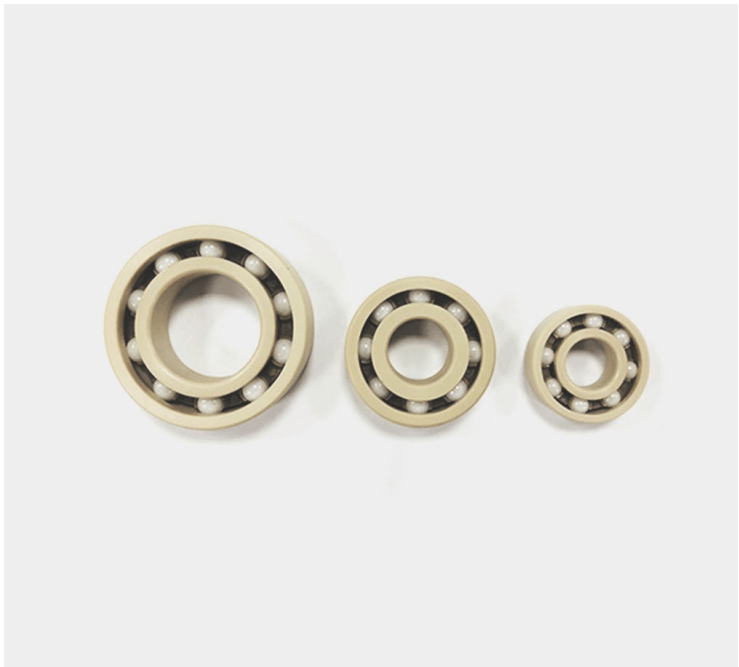

PEEK Roller Ball Bearing

Material: PEEK

Measurement System: Metric

Natural

Maximum Temperature: 260°C/500°F

Flammability: UL94 V-0

PEEK Roller Ball Bearing conform to the following Standards/Norms:

PEEK Roller Ball Bearings, available in sizes ranging from type 6000 to 6205, are precision-engineered components featuring a PEEK inner and outer ring with zirconia ball bearings. PEEK (Polyether Ether Ketone) is a high-performance thermoplastic known for its exceptional mechanical strength, chemical resistance, and thermal stability. The inclusion of zirconia ball bearings enhances the bearing's durability and wear resistance, making these bearings ideal for high-performance applications. PEEK's lightweight nature and low friction coefficient further contribute to the efficiency and longevity of these roller ball bearings, making them suitable for use in various demanding environments.

Type – 6000, 6001, 6002, 6003, 6004, 6005, 6200, 6201, 6202, 6203, 6204, 6205

Advantages of Using PEEK Roller Ball Bearings:

High Mechanical Strength: PEEK provides excellent tensile and compressive strength, ensuring the bearings can withstand significant loads.

Chemical Resistance: The material's resistance to a wide range of chemicals, including acids, bases, and solvents, ensures the bearings' durability in corrosive environments.

Thermal Stability: PEEK maintains its mechanical properties at high temperatures, making these bearings suitable for use in applications with significant thermal fluctuations.

Wear Resistance: The combination of PEEK and zirconia ball bearings offers superior wear resistance, extending the bearing's service life.

Low Friction: PEEK's low friction coefficient reduces energy loss and heat generation, improving the efficiency of the bearings.

Lightweight: The bearings' lightweight construction reduces the overall weight of assemblies, benefiting applications where weight is a critical factor.

Non-Magnetic: The non-magnetic nature of PEEK and zirconia makes these bearings ideal for applications where magnetic interference must be avoided.

Specific Applications of PEEK Roller Ball Bearings:

Medical Devices:

Used in MRI machines and other diagnostic equipment where non-magnetic components are essential.

Ideal for use in sterilisation equipment and other medical devices requiring high chemical resistance and durability.

Aerospace:

Employed in aircraft components where lightweight and high-performance materials are necessary.

Suitable for satellite and space applications due to their thermal stability and low outgassing properties.

Chemical Processing:

Utilised in pumps, valves, and mixers where resistance to aggressive chemicals and high temperatures is crucial.

Ideal for use in environments where corrosion resistance is essential.

Food and Beverage Industry:

Used in food processing equipment where cleanliness, chemical resistance, and compliance with food safety standards are required.

Suitable for applications involving frequent washdowns and exposure to cleaning agents.

Electronics and Semiconductor Manufacturing:

Applied in cleanroom environments and semiconductor manufacturing equipment where low contamination and high precision are needed.

Ideal for high-speed machinery and robotics requiring durable, low-friction components.

PEEK Roller Ball Bearings, available in sizes from type 6000 to 6205, feature a PEEK inner and outer ring with zirconia ball bearings, offering exceptional mechanical strength, chemical resistance, and thermal stability. These bearings are ideal for a wide range of applications, including medical devices, aerospace, chemical processing, food and beverage industry, and electronics manufacturing. The combination of PEEK and zirconia provides superior wear resistance, low friction, and lightweight properties, ensuring reliable performance and longevity in demanding environments.

The PEEK data sheet is available as a PDF to download below.
